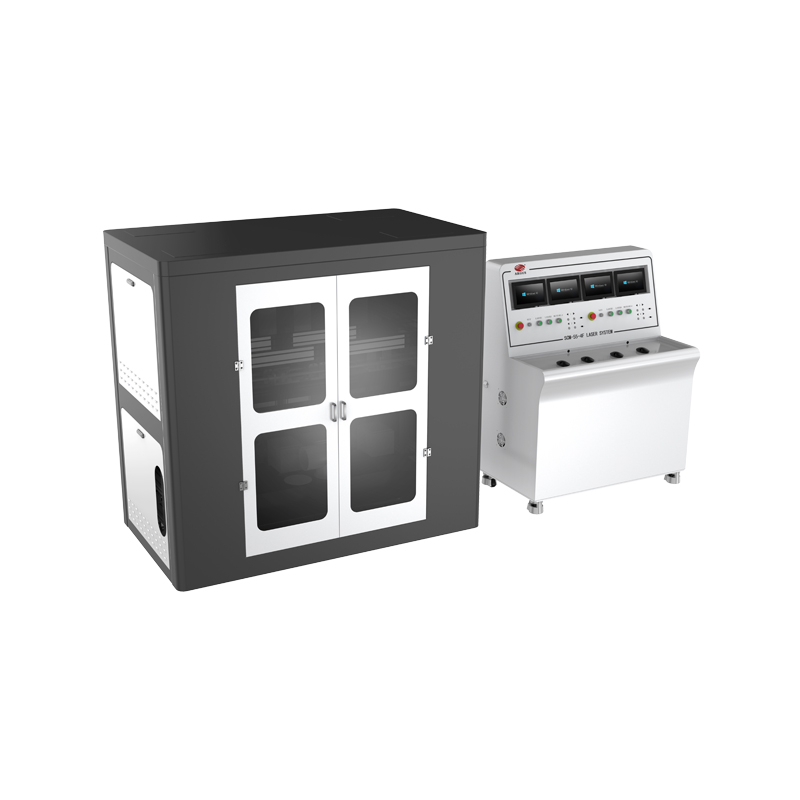

ARGUS Rotary High Output Easy Tearing Line Double&four Heads Laser Marking Plastic Laminate for Packaging Industry

1.Brief Introduction

As the high-tech product, CO2 Dynamic Laser Marking Machine adopts the technologies of Laser, Optics, Precision Machinery, Electronic technology, PC software technology and Cooling Project.
The machine adopts the 10.64um CO2 laser source, which can satisfy the application in different industries such as marking, cutting, engraving, color removal, paint processing, material micro-processing and etc. The equipment adopts Aluminum frame structure, and the latest motor driving in the whole worktable platform to ensure the stable qualities. The adjustment of laser optical path is driven by two galvanometer motors(XY), and the third axis is driven by pre-scanning gathered system to make a wildly adjustment for focus distance.
Availability:
Quantity:
  • SCM55 Four Head

易撕线

|

 Laser in Flexible Packaging

Laser technology offers a range of applications in the flexible packaging industry, providing precise and efficient solutions.Some key uses of lasers in flexible packaging include:

1. Perforation
Laser technology can be employed for creating micro-perforations in flexible packaging materials. This is useful for controlled
gas and moisture exchange, extending the shelf life of packaged products like fresh produce or snacks.

2. Scoring and Cutting
Lasers are effective in scoring and cutting flexible packaging materials with high precision. This is particularly beneficial for creating easy-open features on packaging or for intricate designs, ensuring clean and accurate cuts without damaging the material.

3. Window opening

Laser technology can be used to create precise and customizable openings or transparent windows in flexible packaging materials.




Easy opening


Breathing holes

开窗

Window opening

The CO2 Laser Scoring and Perforation System is widely used in the PVC、PE、PET、AOPP、MOPP and composite package materials, shrink sleeve, shrink label easy tearing line high speed laser scoring perforating and some soft packing air permeable hole laser perforating.

| Application Video

|

 ARGUS Laser System

光纤一拖四易撕线激光切割机

Laser Head Model

Laser scoring in web-direction onlyLaser mircro perforationMulti-head availableLaser power: 30W/55W/70W/100W

CO2一拖四易撕线激光打标机

Galvo Head Model

 Laser scoring in Cross web-direction

 Laser micro perforation

 Small hole cutting

 Multi-head available

 Laser power: 55W/70W/100W

 Working area:

 50x50mm~300x300mm



CO2激光开窗机

3D Galvo Head Model

 Laser scoring in Cross web-direction

 Small hole cutting

 Window opening

 Multi-head available

 Laser power: 250W

 Working area:

 250x250mm~600x600mm

|

 Laser Head Model

CO2一拖二易撕线激光切割机


Model

SCM30/SCM55/SCM70/SCM100

Laser Power

30/55/70/100 watts

Laser Source

Coherent CO2metal RF Laser source

Laser Wavelength

10.6μm

Laser Frequency

1kHz~25kHz

Flim Perforation Speed

50-400 meters/min(according to the material and laser power)

Repetition Precision

0.01mm

Emulated Encoder

Including

Control System

ARGUS

Including

Customized mounting structure, Computer with software, Exhausting Fans, Air Pump

Power Supply

110V~220V/50Hz~60Hz

Cooling Way

Air/water Cooling

Multi-head

Avaible according to the request


|

 Galvo Head Model

易撕线激光打标机


Model

SCM55/SCM70/SCM100

Laser Power

55/70/100 watts

Laser Source

Coherent CO2metal RF Laser source

Laser Wavelength

10.6μm

Laser Frequency

1kHz~25kHz

Galvo Head

High speed galvo scanner

Idle Marking Speed

3000mm/s

Flim Perforation Speed

50-280 meters/min(according to the material, laser power and processing design)

Repetition Precision

0.01mm

High Precision Sensor

Japanese RGB Sensor Eye Mark Reader ( Response time 200us)

Emulated Encoder

Including

Control System

JCZ/BSL

Including

Customized mounting structure, Computer with software, Exhausting Fans, Air Pump

Power Supply

110V~220V/50Hz~60Hz

Cooling Way

Air/water Cooling

Multi-head

Avaible according to the request

| 3D

Galvo Head Model

CO2激光开窗机

Model

SCM2000

Laser Wavelength

10.6μm

Laser Source

Coherent J2 R.F. metal laser source

Output Power

230~250W

Laser Repetition Frequency

1Khz~100Khz

Galvo Head

High speed 3D galvo scanner

Max Marking Area

250mm*250mm ~600mm*600mm

Marking Speed

≤ 7000mm/s

Repeat Accuracy

±0.01 mm

Fly Marking Speed

50X50mm window 120 m/min( depending on material process)

High Precision Positioning Sensor

1RGB sensor (imported from Japan) response time 50 us digital encoder

Cooling mode

Circulating water cooling

Working Power

AC220V/AC380V 50HZ/60HZ

Average power consumption

7KW

Multi-head

Avaible according to the request

|

 Applications

易撕线详情页

|

 Laser Advantages

1) Using fast laser perforating, holes are protective due to the round shape burning melt, not easy break.

2) High-speed detection, uniform hole size, adjustable hole spacing, any direction.

3) Circulating water cooling of the galvanometer control board, continuous high-speed (50-280m/min) operation, low failure rate.



Laser Perforation

Mechanical gear punching

Perforation Direction

Any direction

One direction

Error Accuracy in high speed

< 0.1-0.5mm

< 1-1.5mm

Perforation speed

50-280meters/min

100-180meters/min

Hole diameter

Same size, min 0.1-0.3mm

not uniform

Holes distance

Always keep same distance(min 0.3mm)

not uniform

All Holes quality

Very uniform

Easy change shape during highspeed working, not uniform

Consumables part

No consumption parts

Change gears always

Application

Cut holes, lines and so on

Just can cut holes

机器实物

机器实物02

机器实物03

配件

易撕线镜片(1)(1)

laser perforation


1. Versatility:

ARGUS LASER's machines offer versatility in terms of accommodating different materials and thicknesses. This flexibility is beneficial for industries with diverse requirements, allowing the machine to handle a range of materials used in packaging and other applications.


2. Advanced Technology:

ARGUS LASER utilize advanced laser technology, providing efficient and effective solutions for scoring and perforating. This could include features such as advanced control systems and automation, contributing to improved overall performance.


3. Customization Capabilities:

The laser scoring and perforation machine from ARGUS LASER allow for customization of different mounting structure. This is valuable for industries that use different kind of slitting and rewinding system.


4. Production Efficiency:

ARGUS LASER's machine is designed to enhance production efficiency. Laser technology is often recognized for its speed and precision, contributing to faster production cycles and potentially reducing overall manufacturing costs.


5. Reliability and Durability:

ARGUS LASER machines is known for its reliability and durability, ensuring consistent performance over time. This is crucial in industrial settings where downtime can have significant impacts on production.


6. Easy of Use:

The laser scoring and perforation machine from ARGUS LASER is designed with user-friendly interfaces and controls. This ease of use can contribute to quicker setup times, reduced training needs, and improved overall operational efficiency.


7. Technical Support and Service:

ARGUS LASER provides strong technical support and service for their machines. This is essential for addressing any issues promptly, conducting routine maintenance, and ensuring that the equipment operates at peak performance.


8. Industry Reputation:

During the 25 years history, ARGUS LASER gains a good reputation within the industry and positive feedback from other users. A strong reputation often indicates a track record of delivering reliable and effective solutions.


公司介绍

About us
SUNIC GROUP is a leading high-tech company specializing in laser processing and solar energy solutions founded in 1998. Recognized by the Chinese government for innovation, we've been entrusted with the "863 Project" and have import-export privileges. Our YAG series filled a gap in the Chinese market for solar laser scribing machines, making us a key player globally.

Our commitment to quality is evident through international standards compliance, including CE and ISO 9001. With over 20 national patents, we are dedicated to industry innovation. Sunic offers a diverse product line, serving industries worldwide, and maintains a strong presence with over 40 agents in China and global exports.

Collaborating with research centers, our engineering team leads in laser and solar energy applications. Our mission is to drive industry development and national revitalization. Guided by a client-oriented philosophy and a commitment to professionalism, Sunic delivers practical solutions with integrity, embodying a reputable Chinese company image.


| Factory Workshop


laser engraving machine
FACTORY

FACTORY 03
Factoy
FACTORY 02


| Our Customers


图片5(1)

1. Define Requirements:

Specify the types of processing materials, material thickness, material width, processing methods, desired patterns, processing quality requirements, processing speed, and provide a schematic diagram indicating the installation dimensions of the equipment.


2. Technical Assessment:

Evaluate feasible technical solutions. Consider technical feasibility, costs, and ensure that the chosen technical solution meets the core requirements of the processing.


3. Solution Validation:

Customers can send material samples for prototype testing to validate the proposed solution.


4. Decision Making:

Based on the product solution, quotation, and test results, the customer makes the final decision.


5. Purchase Order (PI) Signing:

Confirm the final price, payment terms, delivery terms, and other conditions, and sign the Purchase Order.


6. Payment and Equipment Delivery:

Proceed with the payment as per the agreed terms, and arrange for the delivery of the equipment.
