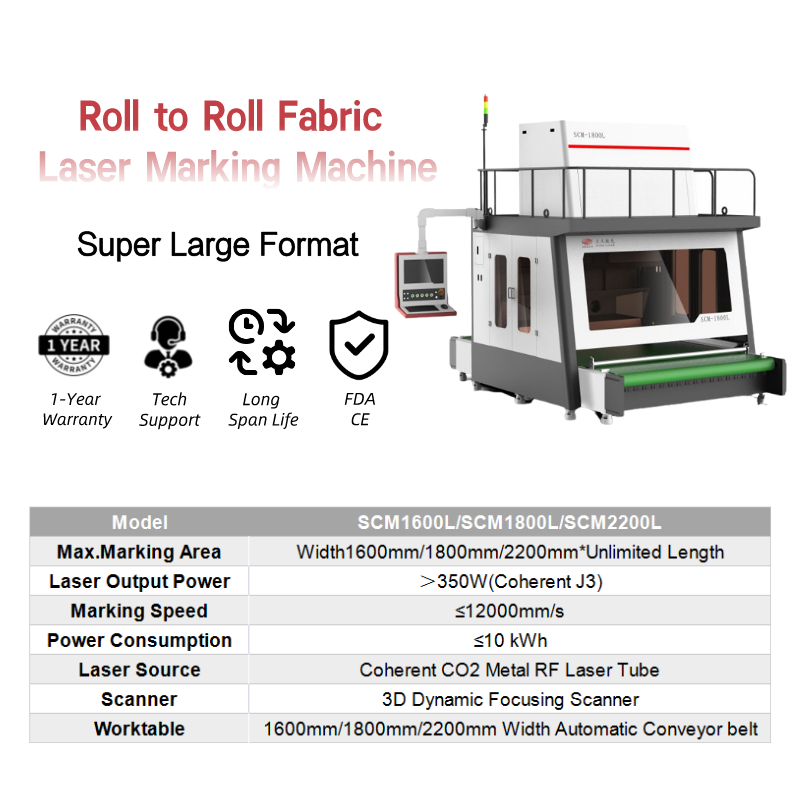

Roll to Roll FabricLaser Marking Machine


Working Area：Width 1600/1800/2200mm*Unlimited Length	Original imported metal R.F. laser tube	High Speed CTI Galvo Scanner

Do You Know?What Are the Different Methods of Laser Marking

The device utilizes the thermal effect of the laser to burn and etch the fabric without contact and convex and concave pattern.

Super Soft Fabrics
Flocking Fabrics
Art Wallpaper
Denim Fabrics
Corduroy
Velvet
Leather
Carpet

PRODUCT ADVANTAGES

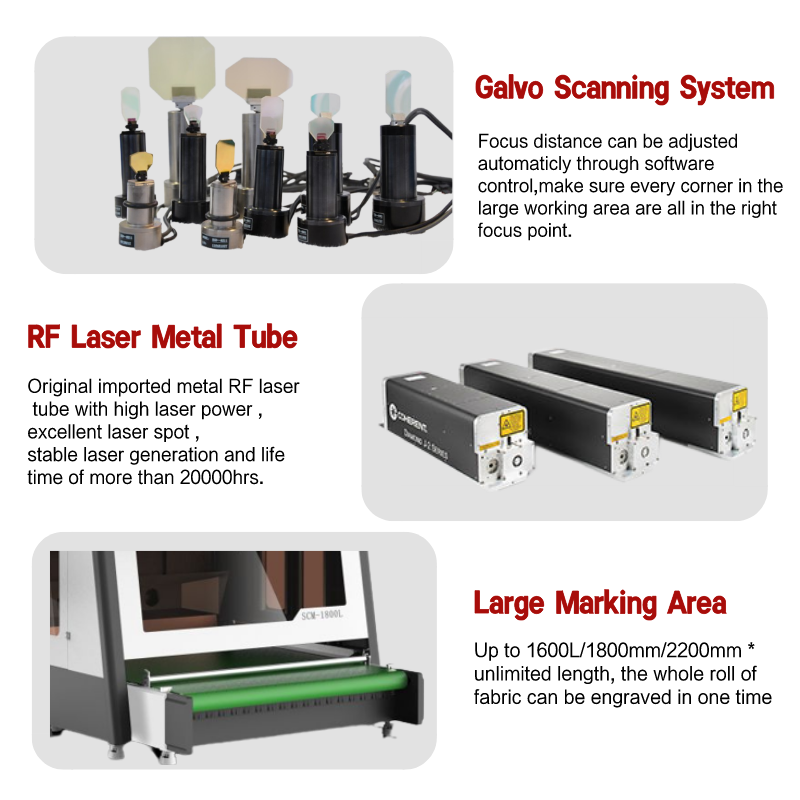

Galvo Scanning System

3D dynamic Galvo head,one time scan area could reach to 800*800mm.
3D dynamic galvanometer control system ensure the best processing results.

RF Laser Metal Tube

Original imported metal RF laser tube with high laser power,excellent laser spot, stable laser generation and life time of more than 20000hrs.

Self-developed Software

Argus Laser self-developed software supports multiple formats to meet your needs.

Application under Windows interface, AutoCAD,PLT,AI,Photoshop compatible,ect supportive.

Marking Area

Large Marking Area: Width 1600mm/1800mm/2200mm*Unlimited Length;Can realize marking,cutting, punching,carving process.

Product Parameters

1800L SCM2200L服装面料烧花机

Model	SCM1600L/SCM1800L/SCM2200L
Max.Marking Area	Width1600mm/1800mm/2200mm*Unlimited Length
Laser Output Power	250W(Coherent J2)
Marking speed	≤10000mm/s
Power consumption	≤7 kWh
Worktable	1.6m/1.8m/2.2m width Automatic Conveyor Belt
Laser Source	Coherent CO2 Metal RF Laser Tube
Laser Wavelength	10.64μm
Laser Frequency	20kHz~200kHz
Scanner	3D Dynamic Focusing Scanner
Repetition Precision	0.01mm
Spot Quality	<1.2㎡
System Support	WIN 7 / WIN8
Output Compatibility	Auto CAD,Photoshop,CorelDRAW etc
File Formats	PLT,DXP,BMP,JPG,AI etc
Software Character	Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cuttin
Power supply	380V/50Hz~60Hz
CoolingWay	Circulation of Water Cooling

Application Scenarios

Advertising Industry	Home Industry	Hotel Industry	Bathroom Industry

Exhibition Decoration	Car Decoration	Garment Industry	Luggage Industry

SAMPLE DISPLAY

>>Fabric Cutting

>>Wallpaper Marking

>>Yoga Mat

>>Door Carpet

>>Hallway / Car Carpet
