Auto Foucs SystemLGP Dotting Laser Marker

Adopts 3D Dynamic

Galvanometer Control System

Original imported

metal RF laser tube

Argus Laser self-

developed software

Do You Know?What Are the Different Methods of Laser Dotting

This machine can design dot shape and dot size according to the actual application requirments.The dots made by the machine has the features of high precision,no deformation and fast speed.

LED Exit Light
Lighting Show
LCD Monitor
General Lighting
Luminous Signs
Decorative Lighting
Big Format Light Box
Acrylic 3D Night Lights

PRODUCT ADVANTAGES

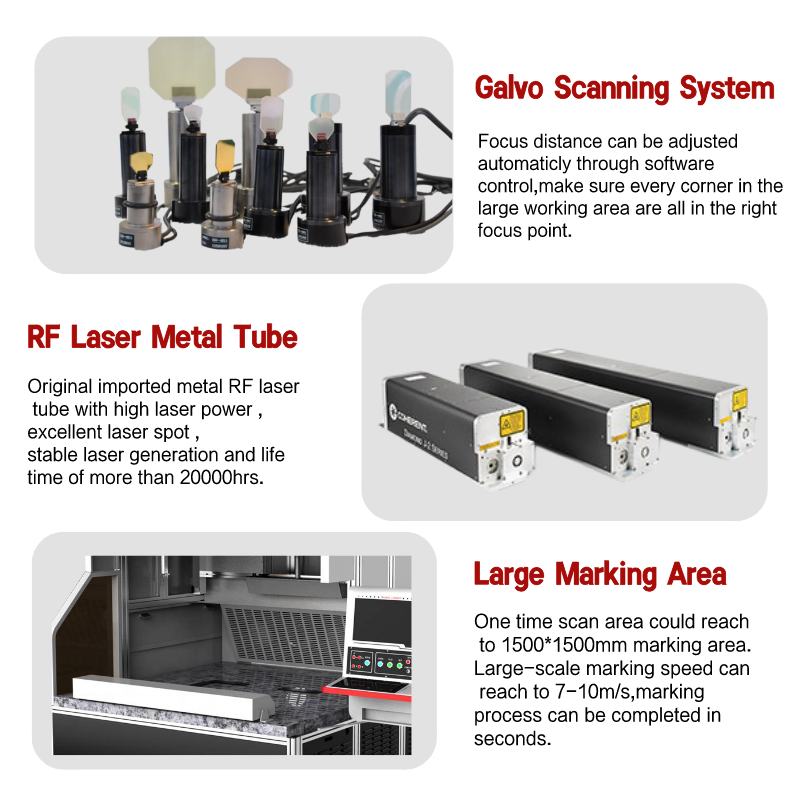

Galvo Scanning System

Use high speed imported CTI galvo system,or Linear Motor structure,makes the production with high speed and accuracy. 600*600mm size LGP finish time is around 45 seconds.

RF Laser Metal Tube

Original imported metal RF laser tube with high laser power,excellent laser spot.

Stable laser output makes the dots uniform.

Stable laser generation and life time of more than 20000hrs.

Professional Dotting Software

The software will automatically generate the dot matrix template file after input the LGP size and select the light input mode. Dots' size and density are available to change.

Good Uniformity LGP

The lighting uniformity of the LGP made by our equipment can reach to 90% plus.

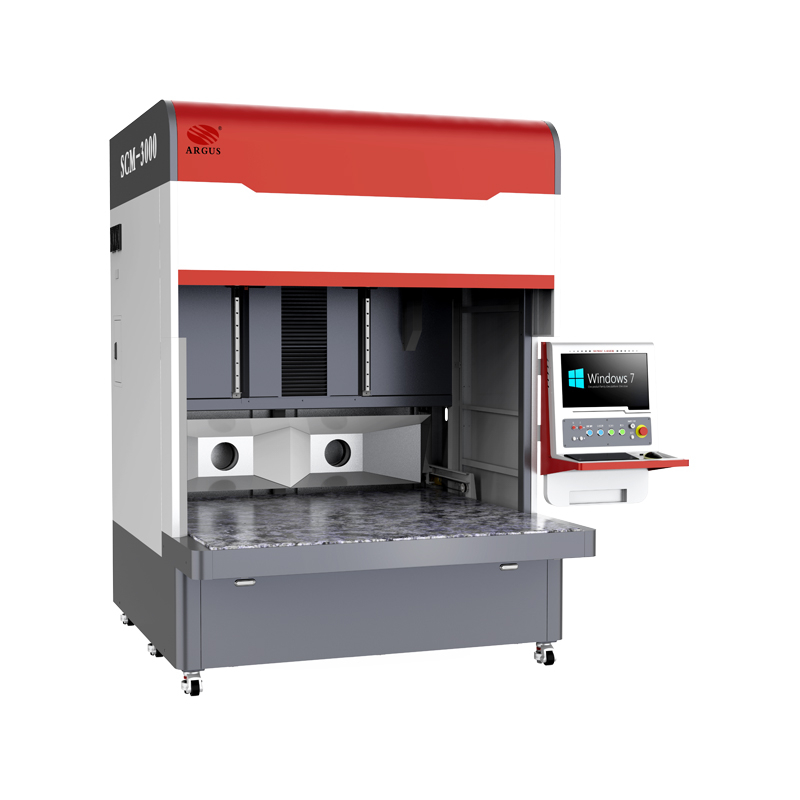

Product Parameters

1.牛仔

Model	SCM3000
Max.Marking Area	1500*1500mm
Laser Output Power	>350W(Coherent J3)
Marking speed	≤10000mm/s
Power consumption	≤7 kWh
Worktable	Marble Worktable
Laser Source	Coherent CO2 Metal RF Laser Tube
Laser Wavelength	10.64μm
Laser Frequency	20kHz~200kHz
Scanner	3D Dynamic Focusing Scanner
Repetition Precision	0.01mm
Min.Letter Size	0.5mm(1100x1100mm),0.7mm(1500x1500mm)
System Support	WIN 7
Output Compatibility	Auto CAD,Photoshop,CorelDRAW etc
File Formats	PLT,DXP,BMP,JPG,AI etc
Software Character	Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cuttin
Power supply	380V/50Hz~60Hz
CoolingWay	Circulation of Water Cooling
Equipment Size	1.65m1.81m2.4m
Equipment Weight	About 1100KG

Application Scenarios

Advertising Industry	Decoration Industry	Lighting Industry	Bathroom Industry

3C Electronic Industry	Medical Industry	Lighting Show	Luminous Signs

SAMPLE DISPLAY

>>Big Format Ultra-thin Light Box

>>General Lighting

>>Decorative Lighting

>>LCD Monitor

>>LED Exit Light

>>Acrylic 3D Night Lights

Comparison

What advantages does the laser process have over screen printing?

LGP Laser Dotting Machine

VS

Screen Printing

	LGP Laser Dotting Machine	Screen Printing
Reflection Unit	Bump point	Plane bump
Reflective Medium	Vaporized on PMMA	Printing ink on PMMA
UV Protection/Strength	Yes / Strong	No/ Weak
Surface Illumination	20% higher than printing	-------
Evenness	More than 90%	About 75%
Light Transmittance	More than 95%	About 85%
Yellowing Rate	No yellowing	More than 5%
Dot Precision	0.2-0.6mm	1-2mm
Life Span	5-8 Years	2-3 Years (Ink deteriorates due to moisture)
Quality	Never fade	Gradually fade
Environmental Friendly	No pollution	Ink is easy to fall off
Shape	Can be cut to any shape	Fixed shape
