SCM1400L
ARGUS

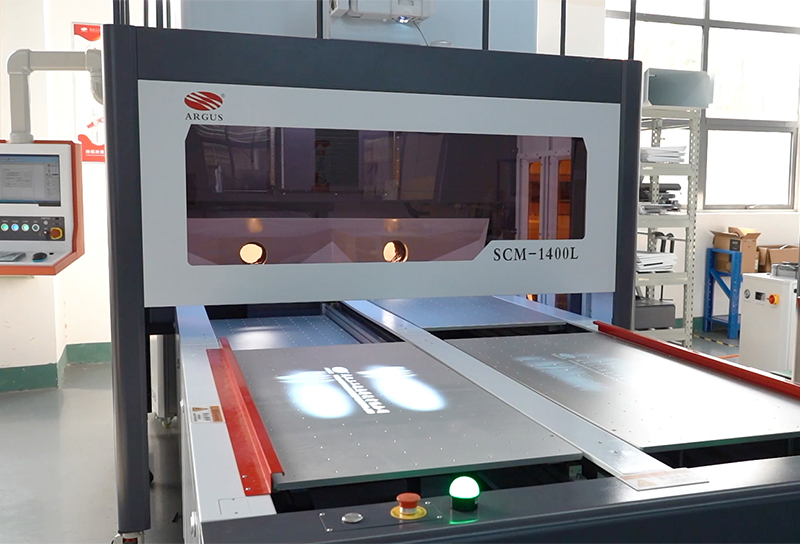

Professional Jeans Washing & Burning Laser Marking Machine
| ||

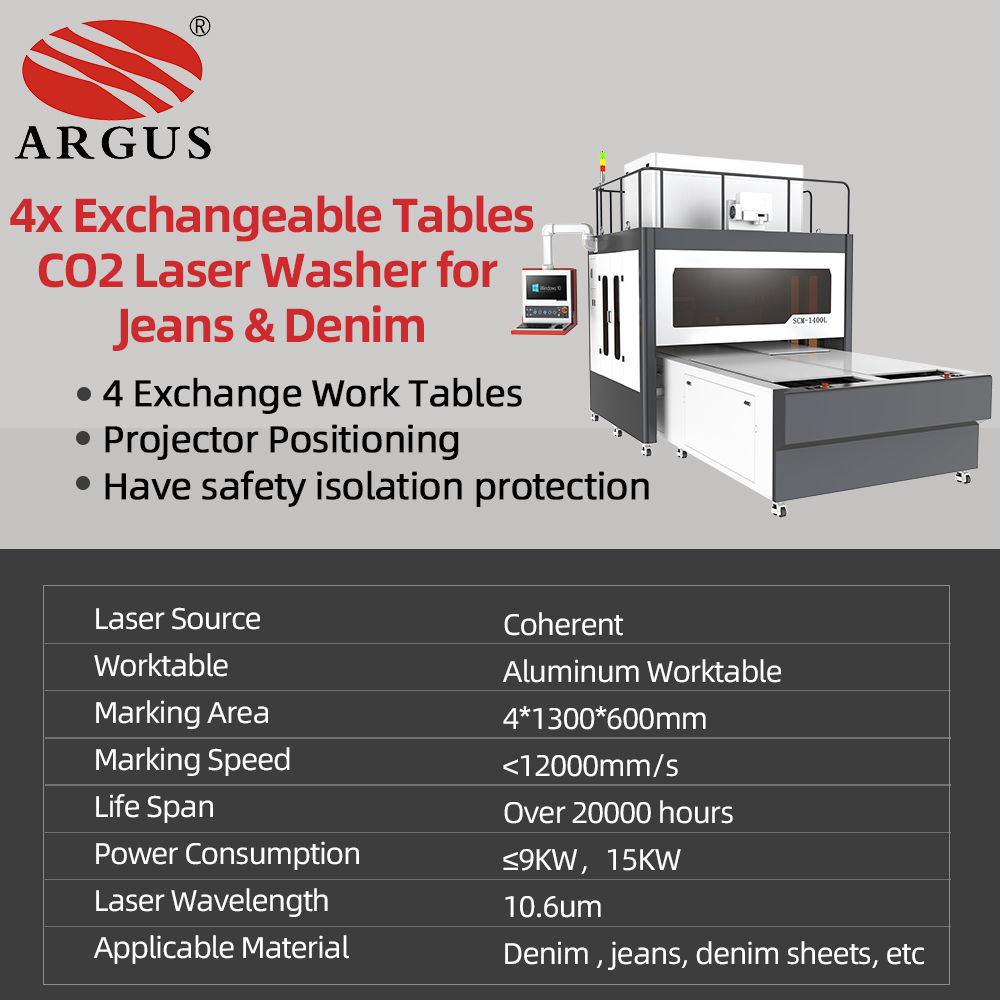

Exchange Worktables Working area: 4*1300*600mm | Coherent R.F. Metal Laser Tube 350W/500W | High Speed CTI Galvo Scanner 10000mm/s |

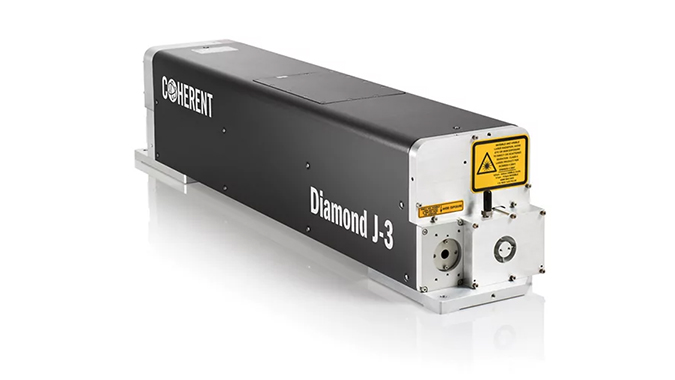

Original Imported R.F Metal Tube USA famous R.F metal tube from the Coherent. Good laser beam quality,long lifespan and table performance. |  |
 | 3D Dynamic Focusing Scanning System Use 3D dynamic focusing scanning system, focus distance can be adjusted automaticlly through software control,make sure every corner in the large working area. |

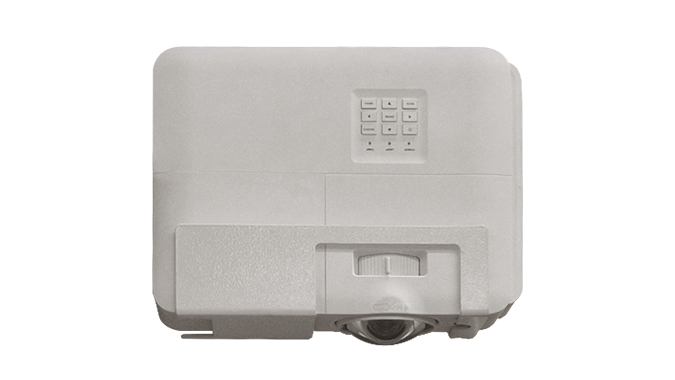

Projector Projector positioning system,easy to observe. It can project the patterns on the materials clearly,projection area will be the accurate engraving area. Laser marking preview,greater visual range. |  |

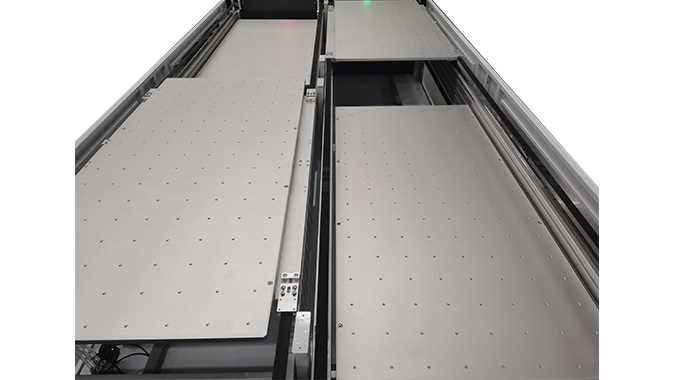

 | Automatic Worktable 4 exchange worktable and single table working area 1300x600mm. Have safety isolation protection between loading & unloading area and laser processing area. |

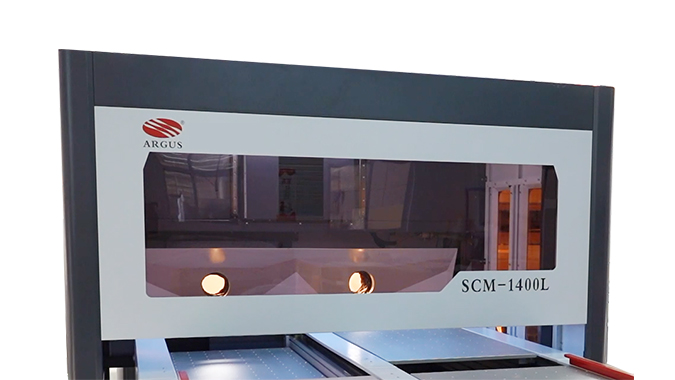

Fully Enclosed Area The marking process can be easily observed by glass window. Safe and hygienic,prevent the spread of smoke and dust by adopt exhaust system. |  |

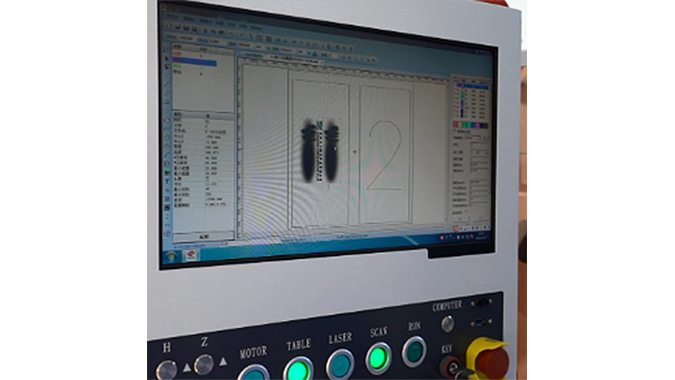

 | Computer Operating Station You can freely design and engrave the patterns as you wish. Sunic self-developed control software,powerful function,strong compatibility. |
Mark will not subside because of environmental reasons(touch, acidic or reducing gas, high or low temperature etc).
Laser marking is a non-mechanical “light knife” for processing, the workpiece will not produce stress after marking. The working surface will not produce corrosion, no “tool” worn, non-toxic, non-polluting.
CO2 Dynamic Laser Marking can work on all non-metal materials(Textile, Leather, PMMA, Wood, MDF, Paper, Marble, Glass etc.)
CO2 Dynamic Laser Marking Machine can engrave fine pattern, the minimum line width can reach to 0.04mm. Engraving&Marking result is clear, durable and beautiful.
Low energy consumption, no consumptive materials, and therefore lower operating costs.
CO2 Dynamic Laser Marking Machine’s Engraving&Marking speed can reach to 7000m/s, three times than that of traditional laser marking machine, marking process can be completed in seconds.
With the high power laser tube and the 3D Scanner technology, the CO2 Dynamic Laser Marking Machine can work on large size materials such as the clothes processing, leather processing, LGP(Light Guide Plate for LED Panel Light and TV) processing.
Due to the combination of laser technology and computer technology, the laser print can be realized by the order from the computer program, and may change the print design at any time, replaces the traditional mold marking process from the fundamental, shorten the product upgrade cycle and provide a convenient tool for flexible production.
Destroy Wash Processing | |||
 |  |  |  |
Whisker Wash Processing | |||
 |  |  |  |
Printing Wash Processing | |||
 |  |  |  |
Monkey Wash Processing | |||
 |  |  |  |
Snow Wash Processing | |||
 |  |  |  |
Old Jeans | |||
 |  |  |  |
