Name: ARGUS High efficiency 100W CO2 Laser Engraver Cutter 1000*600mm Co2 Laser Engraving Machine with Autofocus Laser Cutting Machine For Mdf Plywood Wood Fabric
Brand: ARGUS
Rating: 5.0 (42 reviews)

HIGH SPEED CO2LASRE ENGRAVER CUTTER

SCU5070/SCU1060/SCU1390

	24H Customer and Technical Support
	1 Year Warranty
	Electric Lift Worktable Easy For Processing Diverse Thickness Sheet
	Industrial laser head with red dot guidance to help fast positioning and calibration

SCU1060H SERIES Laser Engraver Cutter

Processes: cutting and engraving
High quality and accurate cutting
Work area: up to 600x1000 mm
Optimization of mechanical and electrical design

未标题-2_02

TECHNICAL PARAMETERS

未标题-2_02

Model	SCU1060H
Working Platform Size	1000*600mm
Laser Power	60W/80W
Max Engraving Speed	2,000mm/s
Max. Cuttin Speed	400mm/s(depends on material)
Repeated Positioning Accuracy	±0.15mm
Min Cutting Character	English Letter：1.5mm
Max. Cutting Depth	6 ~ 8mm(up to the material)
Table Height Adjustment	25cm Adjustable
Red Pointer	650nm
Controlling system	RDCAM
Table Type	Honeycomb or blade
Mo Mirror Reflectivity	95%
Focus Lens	2.0 inch
Mix Cutting Character	English Letter：3mm
DC brushless servo motor	Brand: Leadshine, rated speed：3,000rpm
Cooling Ways	Circulation Water Cooling
Air Pump	Power：138W
	Flow Rate：100L/Min
	Voltage：220V
Exhaust Fan	Power:550W
	Blowing Rate：18m³/min
	outlet diameter：80mm
	Wind Pressure：1.70Kpa
	Rotaing Speed：2800RPM
Software Format Support	CorelDraw, Photoshop,AutoCAD,etc
Graphic Format Support	AI, PLT,BMP, DXF,DST,T100,etc
Working Temperature	0-35°C
Working Humidity	5-95%
Working Power	220V/50Hz/60Hz/2kVA,110V/50Hz/60Hz/2kVA (can customize）
Packing Dimension	205010801280mm

PRODUCT COMPOSITION

Our CO2 laser engraving cutting machines offer a solution for highquality engraving and cutting of acrylics, cardboard, wood,textiles,two-color sign laminate, stone, and much more. Our laser machines are the most robust,accurate, and reliable on the market.

	Choice of Support Tables We provide both a blade & Honeycomb table for laser engraving and cutting
Control Software Friendly software, enabling the import of files: plt, ai, bmp, dxf, dst, having many useful functions, defining work values assigned to a given line color (cutting, engraving, laser speed and power)
	Pass-through Door Pass-through front to rear doors
Visible Red Dot Pointer Since the CO2 laser beam is invisible the red dot pointer on the machine allows you to have a visual reference for locating where the laser will fire.

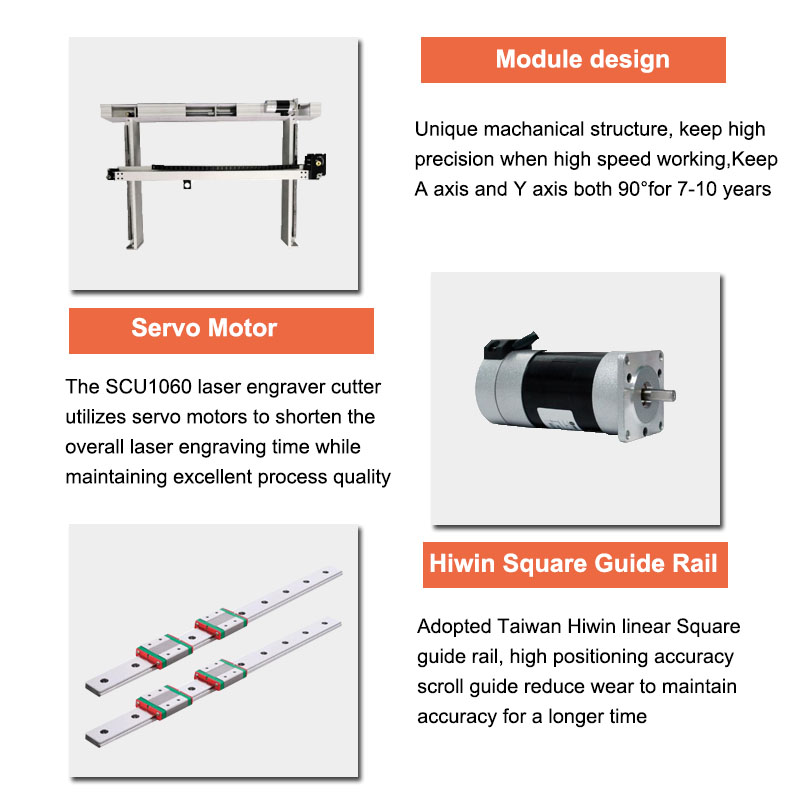

	High Performance Motors Stepper motor is in high precision, high speed, large torque, performance is stable and durable, ensure the high speed operation of the whole machine.
Unique Module Structure The unique module structure is formed in one time assembly to avoid to manually assemble,more accuracy;Keep A axis and Y axis both 90°for 7-10 years.
	Linear Guide Rail Adopted Taiwan Hiwin linear guide rail,high positioning accuracy, reduce wear to maintain accuracy for a longer time.
Yongli Glass Tube High quality laser beam,Easy to change and Long life span 12,000hrs.

APPLICABLE MATERIALS

MATERIAL	CUT	ENGRAVE
Paper	✔	✔
Cloth	✔	✔
Wood	✔	✔
MDF	✔	✔
Wood Veneer	✔	✔
Acrylic	✔	✔
Leather	✔	✔
Press Board	✔	✔
Cork	✔	✔
Rubber	✔	✔
Bamboo	✔	✔
Double color	✔	✔
Plastic	✔	✔
Glass	X	✔
Ceramic	X	✔
Tile	X	✔
Marble	X	✔
Plyeood	✔	✔

SAMPLES SHOW

ACRYLIC

RUBBER

WOOD

FABRIC

PAPER

TECHNICAL PARAMETERS

未标题-2_02

Model	SCU1060H
Working Platform Size	1000*600mm
Laser Power	60W/80W
Max Engraving Speed	2,000mm/s
Max. Cuttin Speed	400mm/s(depends on material)
Repeated Positioning Accuracy	±0.15mm
Min Cutting Character	English Letter：1.5mm
Max. Cutting Depth	6 ~ 8mm(up to the material)
Table Height Adjustment	25cm Adjustable
Red Pointer	650nm
Controlling system	RDCAM
Table Type	Honeycomb or blade
Mo Mirror Reflectivity	95%
Focus Lens	2.0 inch
Mix Cutting Character	English Letter：3mm
DC brushless servo motor	Brand: Leadshine, rated speed：3,000rpm
Cooling Ways	Circulation Water Cooling
Air Pump	Power：138W
	Flow Rate：100L/Min
	Voltage：220V
Exhaust Fan	Power:550W
	Blowing Rate：18m³/min
	outlet diameter：80mm
	Wind Pressure：1.70Kpa
	Rotaing Speed：2800RPM
Software Format Support	CorelDraw, Photoshop,AutoCAD,etc
Graphic Format Support	AI, PLT,BMP, DXF,DST,T100,etc
Working Temperature	0-35°C
Working Humidity	5-95%
Working Power	220V/50Hz/60Hz/2kVA,110V/50Hz/60Hz/2kVA (can customize）
Packing Dimension	205010801280mm

PRODUCT COMPOSITION

Our CO2 laser engraving cutting machines offer a solution for highquality engraving and cutting of acrylics, cardboard, wood,textiles,two-color sign laminate, stone, and much more. Our laser machines are the most robust,accurate, and reliable on the market.

	Choice of Support Tables We provide both a blade & Honeycomb table for laser engraving and cutting
Control Software Friendly software, enabling the import of files: plt, ai, bmp, dxf, dst, having many useful functions, defining work values assigned to a given line color (cutting, engraving, laser speed and power)
	Pass-through Door Pass-through front to rear doors
Visible Red Dot Pointer Since the CO2 laser beam is invisible the red dot pointer on the machine allows you to have a visual reference for locating where the laser will fire.
	High Performance Motors Stepper motor is in high precision, high speed, large torque, performance is stable and durable, ensure the high speed operation of the whole machine.
Unique Module Structure The unique module structure is formed in one time assembly to avoid to manually assemble,more accuracy;Keep A axis and Y axis both 90°for 7-10 years.
	Linear Guide Rail Adopted Taiwan Hiwin linear guide rail,high positioning accuracy, reduce wear to maintain accuracy for a longer time.
Yongli Glass Tube High quality laser beam,Easy to change and Long life span 12,000hrs.
