| Quantity: | |
|---|---|
SCL100/SCL200/SCL500
ARGUS
| Machine Type | SCL100/200/300/500 |
| Laser Mode | Fiber Laser Source |
| Wavelength | 1064nm |
| Laser Power | 100W/200W/300W/500W |
| Frequency | 20kHz~100kHz |
| Pulse width | 10-500ns (Adjustable) |
| Clean Speed | ≤40 M⊃2;/Hour |
| Working Environment | 18-35 ℃ (Reference range) |
| Complete Power | ≤ 3000W |
| Scan Width | Standard single shaft: 5mm~120mm, continuous adjustable; Optional dual axis: no less than 120mm*60mm, 6 scanning modes |
| Operating Temperature | 15℃-55℃ |
| Optional Options | Handheld / Automation/ Non-standard customization |
| Cleaning Head Weight | Single shaft 1.5kg, double shaft 1.8kg |
| Cooling Water Type | Air cooling |
| Contrison items | Chemical cleaning | Mechanical grinding | Dry ice cleaning | Ultrasonic cleaning | Laser cleaning |
Cleaning mode | Chemical cleaning agent | Mechanical / sandpaper, contact type | Dry ice, noncontact type | Cleaning agent, contact type | Laser, contactless |
Workpiece damage | Damage | Damage | No damage | No damage | No damage |
Cleaning efficiency | Low level | Low level | Medium | Medium | High level |
Cleaning effect | Generally, the uneven | Generally, the uneven | Excellent, uneven | Excellent, with a small clean range | Very good, high cleanliness |
Cleaning accuracy | Uncontrollable, with poor accuracy | Uncontrollable, with general accuracy | Uncontrollable, with poor accuracy | Unspecified range of cleaning | Accurate and controllable, with high precision |
Safety / Environmental protection | Severe chemical pollution | Environmental pollution | No pollution | No pollution | No pollution |
Manual operation | Complex procedures requires high requirements and protective measures | High physical strength and required safety protection measures | Simple to operate, handheld or automated | Simple to operate, but requires manual addition of consumables | Simple to operate, handheld or integrated automation |
Consumables | Chemical cleaning agent | Sandpaper, sand wheel, tartar etc | Dry ice | Special cleaning fluid | Power power supply |
Cost input | Low first- time investment and extremely high consumables cost | High first investment and high labor cost of consumables | Medium initial investment, high consumables cost | Low initial input, moderate consumables cost | High first- time investment, no consumables, and low maintenance cost |
| Product Description
Laser Rust Cleaning Machine Function Introduction:
The laser cleaning machine can efficiently remove resin, oil stains, stains, dirt, rust, coating, plating, and paint on the surface of the work piece, meeting the cleaning requirements of complex shapes and fine positioning in the industrial processing field, achieving a cleaner cleaning effect with higher cleanliness, and a higher overall cost.

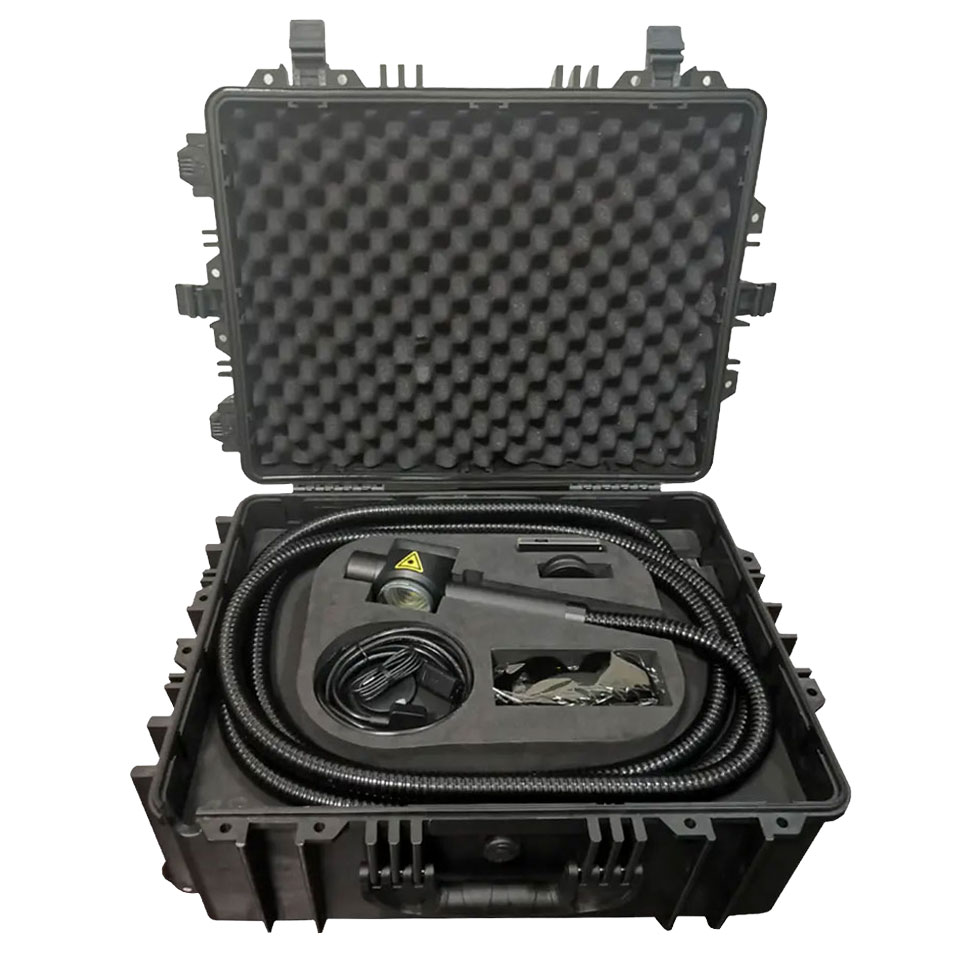

Tie rod Box Cleaner Super Portable Laser Rust Remover
1. Easy to carry
No external power supply, easy to carry, small size.
2. No damage to the material substrate
Non-contact cleaning, no damage to the material substrate, high-precision cleaning.
3. No pollution, safe and environmentally friendly
No chemical cleaning solution, no secondary pollution.
4. Blow protection device
The blow protection device is added to reduce the chance of damage to the field lens.
Product Advantages

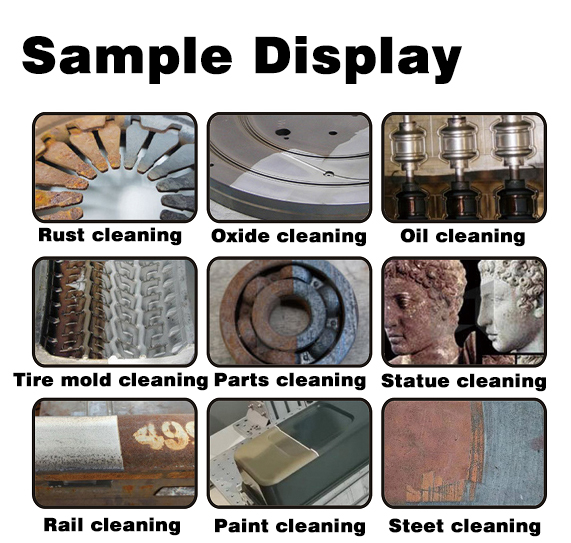

200w 300w 400w 500w portable fiber laser cleaning machine. For Rust removal, paint removal, oil removal, cultural relic restoration, glue removal, coating removal, etc. 1000w laser clean machine rust removal,1000w 1500w 2000w option.
1. No consumables, no chemical pollution, saving energy and electricity;
2. No contact, no friction, and no stress can protect the surface of brittle materials, and minimize damage to the substrate;
3. It can remove pollution particles below the nanometer level, and the cleanliness is high;
4. Optical fiber transmission can be moved and operated, precisely positioned for cleaning, and can also clean areas that are not easily accessible;
5. Synchronous cleaning and synchronous processing to achieve zero discharge during the cleaning process;
6. It can realize fast cleaning of heavy pollutants and high-speed cleaning of light pollutants;
7. Laser cleaning can solve problems that cannot be solved by traditional cleaning methods;
8. Wide range of applicable materials for laser cleaning;
How Much Does A Fiber Laser Cleaning Machine Cost?
The cost of handheld fiber laser cleaning machines varies greatly in accrodance with different laser power. A new fiber laser cleaner can cost from $4.2k to $13k. Specify your needs and get a quote for ARGUS fiber laser welder machine now.The delivery time is within 7 days.
