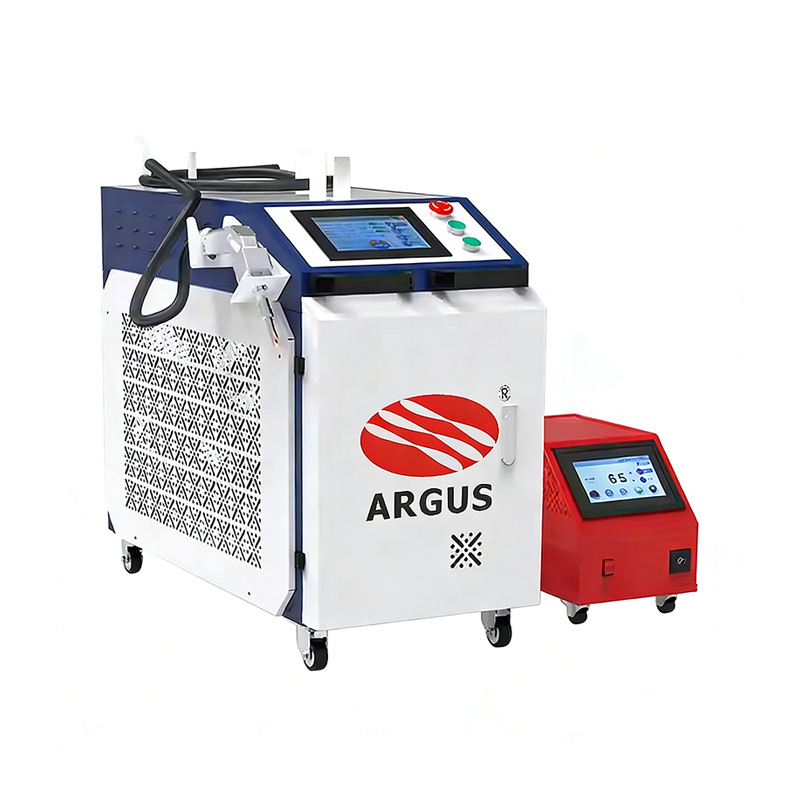

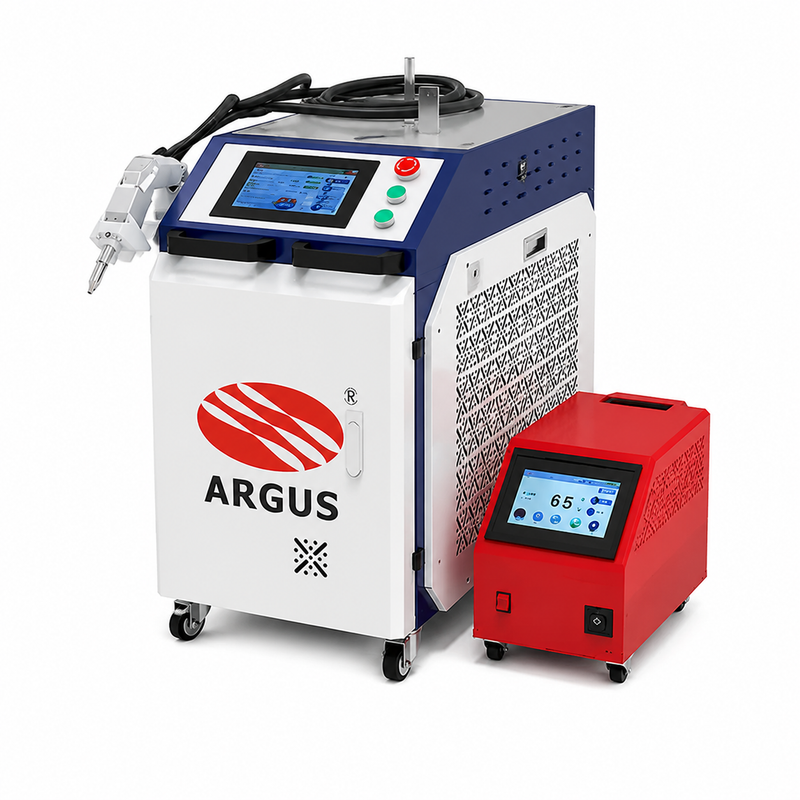

Handheld Type Portable Laser Welding Machine Laser Welders 1000w 1500w 2000w Welding Machine 3 in 1

Name: Handheld Type Portable Laser Welding Machine Laser Welders 1000w 1500w 2000w Welding Machine 3 in 1
Brand: ARGUS
Rating: 5.0 (72 reviews)

Product name: Hand held laser welding machine

Availability:

Quantity:



Inquire Add to Basket

Model:
SFW1000/ SFW1500/SFW2000
Brand:
ARGUS

| Technical parameters

Model No.	SFW1000	SFW1500	SFW2000
Laser Source	Fiber Laser 1080nm	Fiber Laser 1080nm	Fiber Laser 1080nm
Laser Power	1000W	1500W	2000W
Modulation Frequency	<10k Hz	<10k Hz	<10k Hz
Power Stability	±2%	±2%	±2%
Work Mode	Continuous & Pulsed	Continuous & Pulsed	Continuous & Pulsed
Input Voltage	AC 220V/50HZ	AC 380V/50HZ	AC 380V/50HZ
Power Consumption	max 3KW	max 4KW	max 5KW
Penetration Depth	max 2mm	max 3mm	max 4mm
Cooling Unit	Built-in chiller 12L	Built-in chiller 12L	Built-in chiller 12L
Fiber Delivery Length	10 meters	10 meters	10 meters
Ambient Temp	0-40℃	0-40℃	0-40℃
Control Interface	7” LED Touch Screen	7” LED Touch Screen	7” LED Touch Screen
Language Option	6 languages	6 languages	6 languages
Machine Dimention	10306001200 (mm) 40.5523.647.24 (inch)	10806001300 (mm) 42.5223.651.18 (inch)	16708201450 (mm) 65.7532.2857.08 (inch)
Gross Weight	280KGS	330KGS	450KGS

| Product Description

What is fiber laser welding machine application ?

Fiber laser welding machine is a new technology special for weld most of metal , Material Application:Stainless steel, carbon steel, alloy steel, silicon steel, aluminum,aluminum alloy, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet marking and engraving. Compare with traditional Argon arc, MMA and TIG Welding , it has many advantage as follow:

1. Easy to operate , no need any experience, even a women also can did well on it .

2. High efficiency , 4-12 times faster than traditional welding.

3. It can be welded at any angle, also can Butt welding, Vertical position welding, Fillet welding, Stitch welding , etc . Most important, almost no need polishing after welding. As the base metal will not deformation and not have scar. Also it is more firm and stable .

4. Cost is much lower, labor cost and electricity cost are reduced by at least 50%

5. Employee safety. No radiation, no harm to people, just wear glasses.

What is the fiber laser welding machine?

Fiber Laser Welding is a welding technology used to create a strong joint between several metal

components with fiber laser. Fiber laser produces a beam of high-intensity that is concentrated into

one spot. This concentrated heat source enables fine, deep welding with high welding speed.

ARGUS handheld fiber laser welding machine is used to weld metal plates and metal tubes.
For more details about handheld fiber laser welder machine,just contact us.

Welding thickness

1. 1000w handheld laser welder can weld 0.5-2mm steel;

2. 1500w fiber laser welder is used to weld 0.5-3mm steel;
3. 2000w laser welder can weld 0.5-4mm steel,0.5-3mm aluminum.
Due to the difference of the plate and labor, please refer to the actual welding.

How much does a fiber laser welding machine cost?

The cost of handheld fiber laser welder machines varies greatly in accrodance with different laser power. A new fiber laser welder can cost from $4.4k to $13k. Specify your needs and get a quote for ARGUS fiber laser welder machine now.The delivery time is within 7 days.

Product Details

Welding Head

• Welding joint is light

• Flexible and easy to operate.

• Used for welding of various angles and positions

Control Panel

Powerful functions, Touch Screen •

Complete cutting process,debugging easily •

Supports multiple languages •

Laser Source

• High Electro-optic Conversion Efficiency

• High reliability, long service life

• Maintenance-free Operation

Machine Parts

Complete basic accessories •

Easy replacement •

Optional collocation •

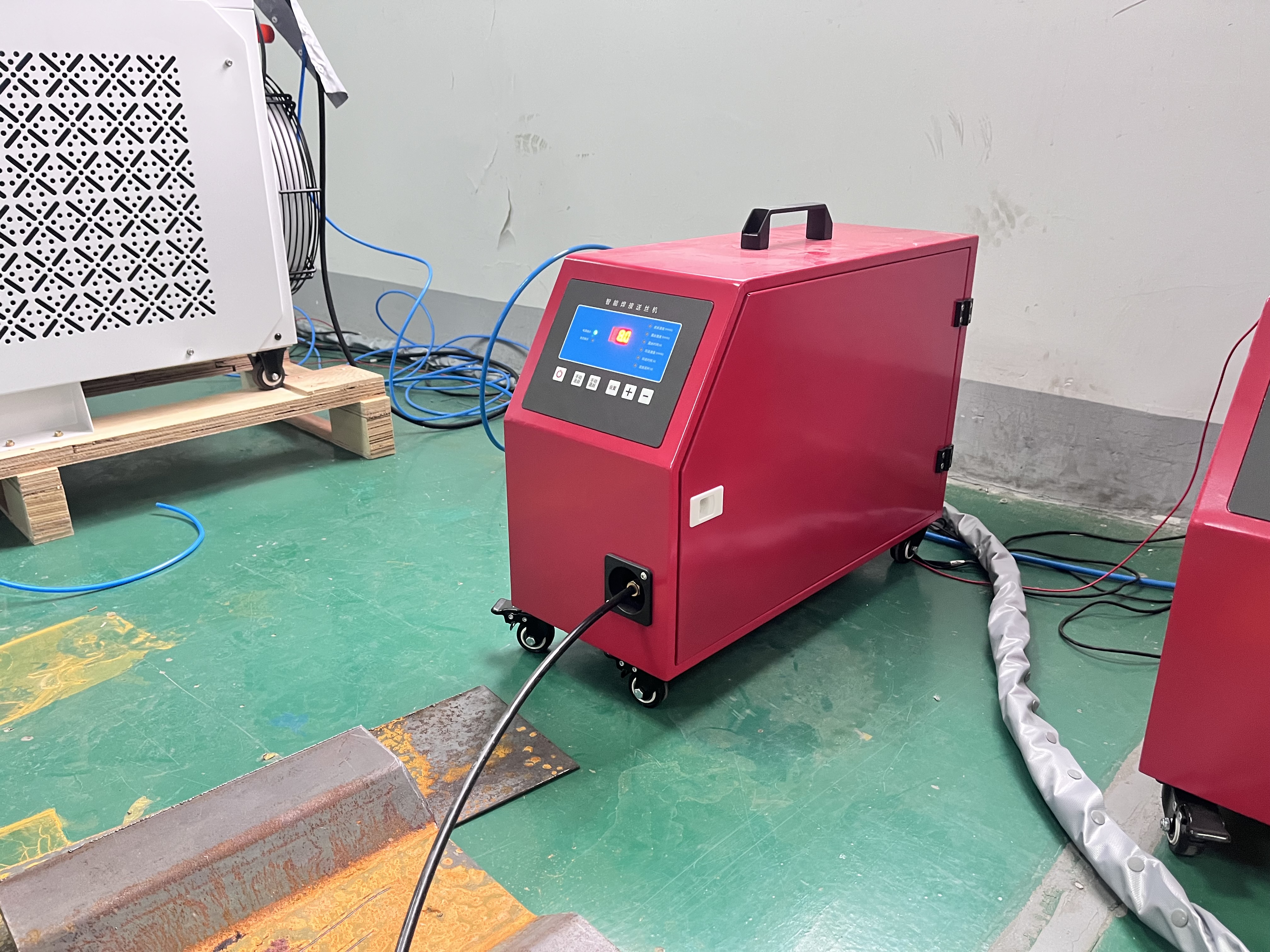

Wire Feeder

• Small and lightweight, easy to move

• 0.8-2.0mm welding wire can be used

• Simple operation, easy to replace materials

| Sample Display

Application Video

Company Profile

ABOUT SUNIC GROUP

Wuhan Sunic Group is a professional laser machines and solar panel products lines equipments manufacturer since 1998. We are specialized in Design, R&D, Manufacture, Sales and Service for laser machines.

We supply customized solution for different materials processing , such as Invitation cards, Wedding cards, Pop up cards, Pop up books , Candy box , Paper products, Acrylic , PMMA, LGP, Jeans Wash, Leather, Fabric, Textiles, Wood, MDF, Laminate materials , Marble, Package Film, Metal / Plastic products, etc.

Our laser equipment is widely used in Solar Photovoltaic production line, IC Component Production, Leather & Garment Industry, Advertising Signs, Decoration crafts, Equipment spare parts, Daily hardware, Measurement tools, Medical instruments, Printing&packing industries, etc. Sunic Group would like to be customer's technical laser and solar equipment consultation and support for further development and progress together.

Exhibition

Wuhan

Shanghai

Las Vegas

Vietnam

Certificate

Packing & Shipping

FAQ

Q1.What kind of laser machine and model should I choose?

A: You can tell us your processing material, working size and detail requirement, detail work by picture or video so that we can judge whether our machine can meet your need

Q2.What kind of materials does the laser machine can process?

A: We have different laser machines, such as Fiber laser, CO2 Laser, UV Laser Green Laser. Normally Fiber laser can process metal and plastic. CO2 laser is for processing non metallic materials, such as Acrylic, PMMA,Wood, Glass, Leather,Jeans, Paper, Textiles Garments and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass, crystal and some special processing job.

Q3.Is it easy to operate?

A: We will send you manual and guide video in English, I can teach you how to operate the machine. lf you still can not learn how to use it, we can help you by Team viewer online help software.Or we can talk by phone email or other contact ways.

Q4.What s your guarantee. in case the machine breaks down?

A: The machine has one year guarantee. If it breaks down, generally speaking our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

Q5.How will you do the after- sale service?

A: We will firstly check your problems online through Team viewer,E-mail, Whatsapp or other contact way, if it is easy to handle it, we will guide you online to fix it or send you the spare parts for replacement.

Q6.What is your equipment lead time?

A: Fiber laser marking machine lead time is around 7 working days. CO2 laser engraving&cutting machine lead time is around 2-3 weeks 3D dynamic CO2 laser marking machine lead time is around 10 working days.

Q7.How will you do the package and shipping?

A: All of our equipment are packed in export standard cases. Express, air shipping, sea shipping are all available.
