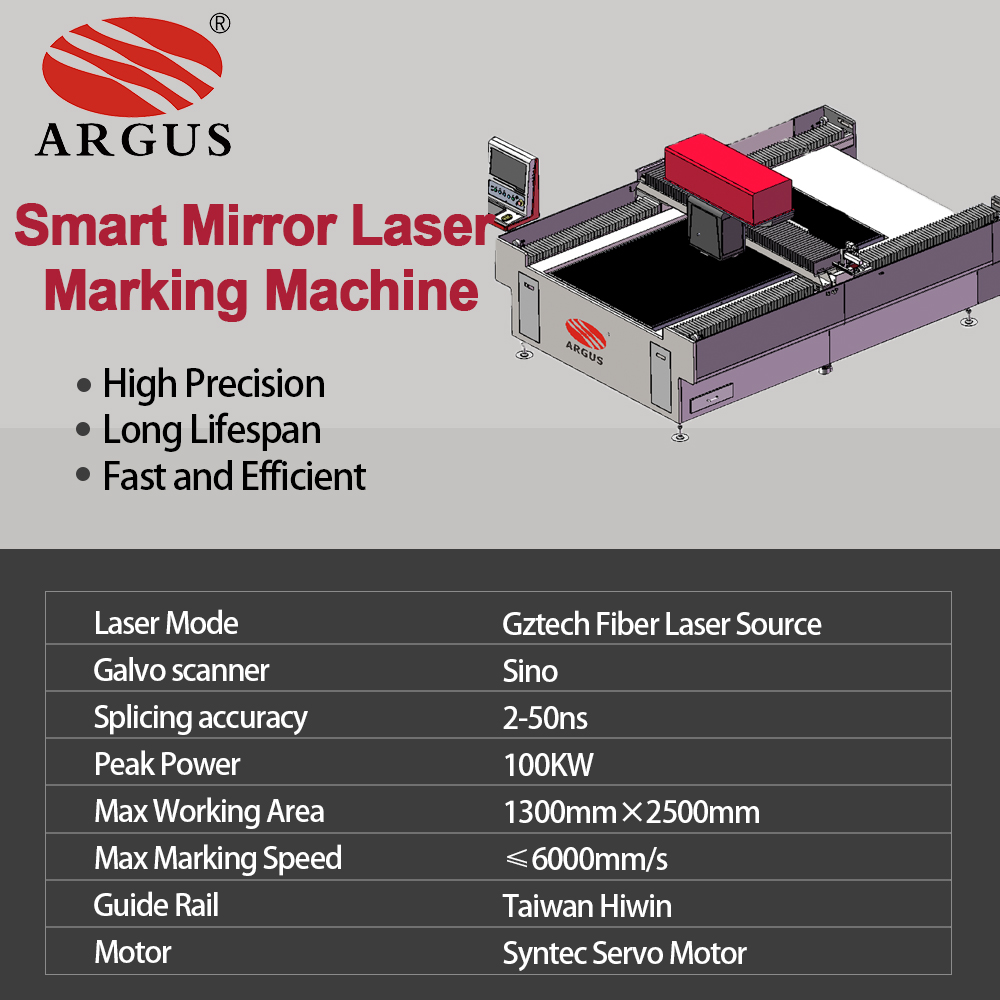

Argus Laser Smart Mirror Engraving System

Argus Laser’s Smart Mirror Laser Engraving Machine combines precision and speed to deliver flawless, high-quality engravings on glass and mirror surfaces. Utilizing advanced laser technology, it ensures clean, sharp markings ideal for both simple and intricate designs. This machine is designed for seamless integration into various production lines, offering reliable performance with minimal maintenance

Core Advantages:

High Precision: Clear, sharp engravings.
Fast Marking: Enhance production efficiency.
Durable: Long-lasting, reliable performance.
Versatile: Works on various glass and mirror types.
Eco-Friendly: Low energy consumption.
Easy to Use: Simple setup and operation

Application Industries:

Advertising & Signage: Create sharp and detailed logos and designs on mirrors and glass.

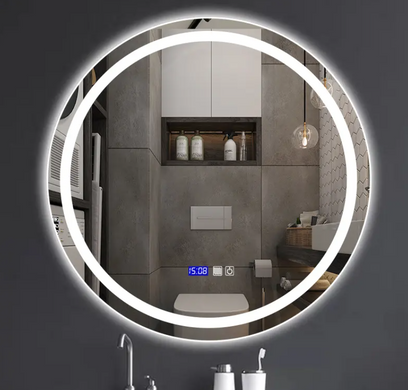

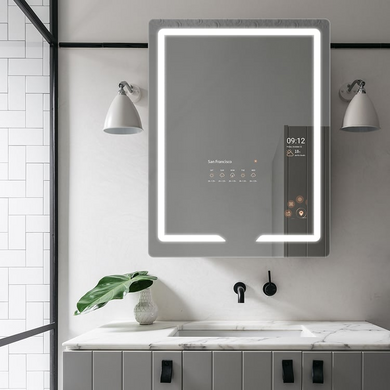

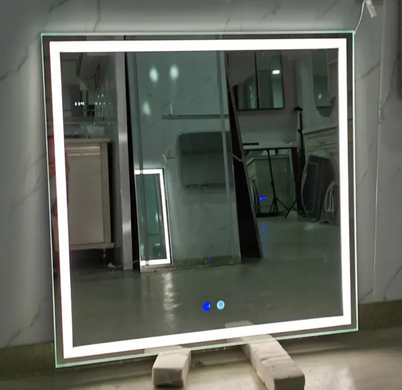

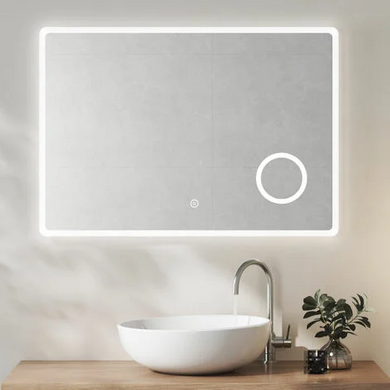

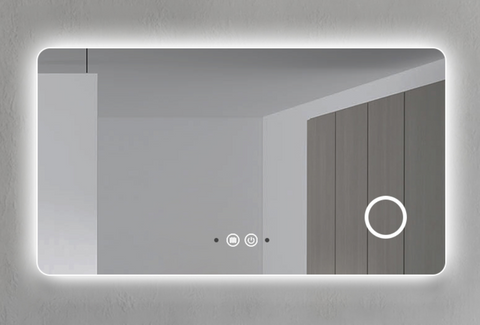

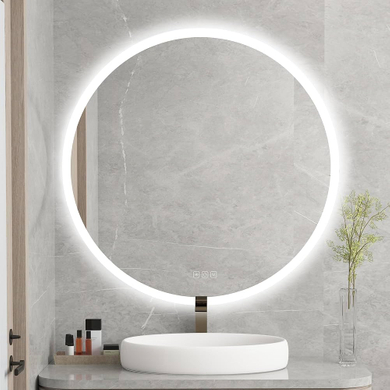

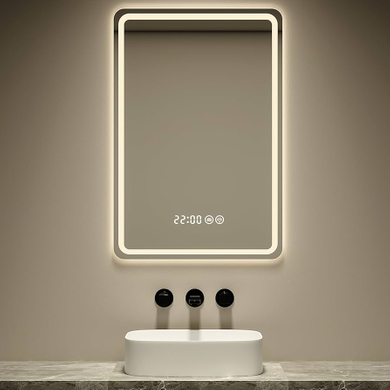

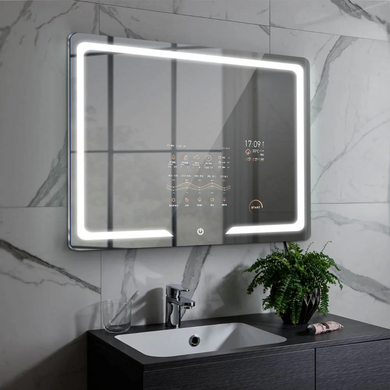

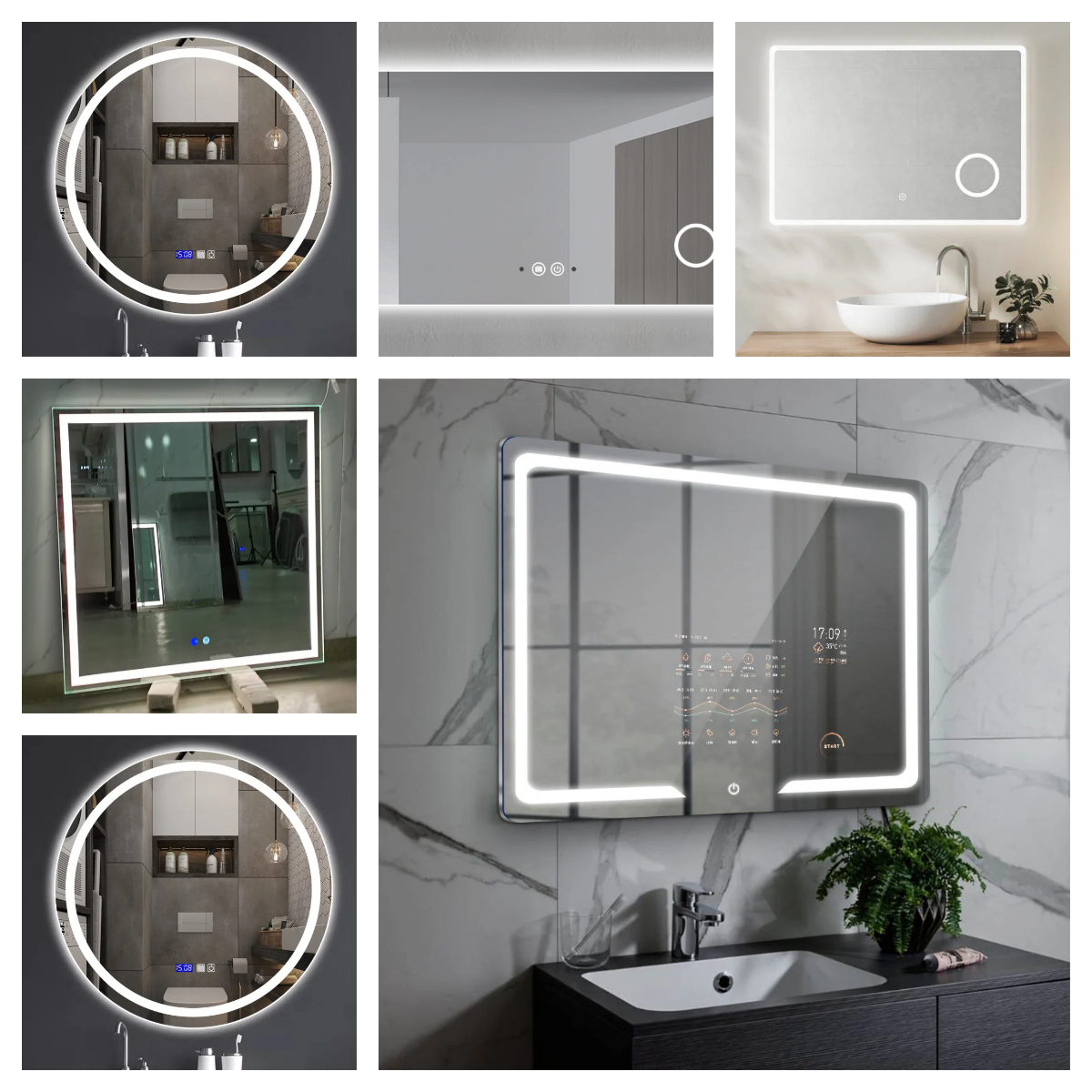

Home Décor: Perfect for engraving decorative patterns and custom designs.
Electronics: Marking glass panels, touch screens, and displays with high precision.
Automotive: Engraving mirrors and glass components with intricate details.
Jewelry: Personalizing glass or mirror jewelry with fine engravings.

Technical Parameters

Technical Terms	Specification
Type	SFM300
Laser Mode	Gztech Fiber Laser Source
Wavelength	1060~1080nm
Maximum pulse energy	1.0mJ
Output Power	300W
Frequency adjustment range	1-3000 kHz
Galvo scanner	Sino
Field Lens	Opex
Splicing accuracy	0.05mm
Pulse Width	2-50ns
Peak Power	100KW
Beam Quality	M2<1.5
Max Marking Speed	≤6000mm/s
Max Working Area	1300mm×2500mm
Transmission	Taiwan PMI Ball screws Transmission
Guide Rail	Taiwan Hiwin
Motor	Syntec Servo Motor
Cooling Way	Air Cooling
Power Supply	220V/50Hz~60Hz (Customized)
Control Card	Syntec
Software	Syntec
File Formats	PLT, PCX, DXP, BMP, JPG etc
Output Compatibility	AutoCAD, CorelDRAW, Photoshop etc
Marking Varieties	Words, Pictures, Bar Codes, Serial Numbers etc

TECHNICAL PARAMETERS

1325 智能镜

Technical Terms	Specification
Type	SFM300
Laser Mode	Gztech Fiber Laser Source
Wavelength	1060~1080nm
Maximum pulse energy	1.0mJ
Output Power	300W
Frequency adjustment range	1-3000 kHz
Galvo scanner	Sino
Field Lens	Opex
Splicing accuracy	0.05mm
Pulse Width	2-50ns
Peak Power	100KW
Beam Quality	M2<1.5
Max Marking Speed	≤6000mm/s
Max Working Area	1300mm×2500mm
Transmission	Taiwan PMI Ball screws Transmission
Guide Rail	Taiwan Hiwin
Motor	Syntec Servo Motor
Cooling Way	Air Cooling
Power Supply	220V/50Hz~60Hz (Customized)
Control Card	Syntec
Software	Syntec
File Formats	PLT, PCX, DXP, BMP, JPG etc
Output Compatibility	AutoCAD, CorelDRAW, Photoshop etc
Marking Varieties	Words, Pictures, Bar Codes, Serial Numbers etc
