Equipment performance

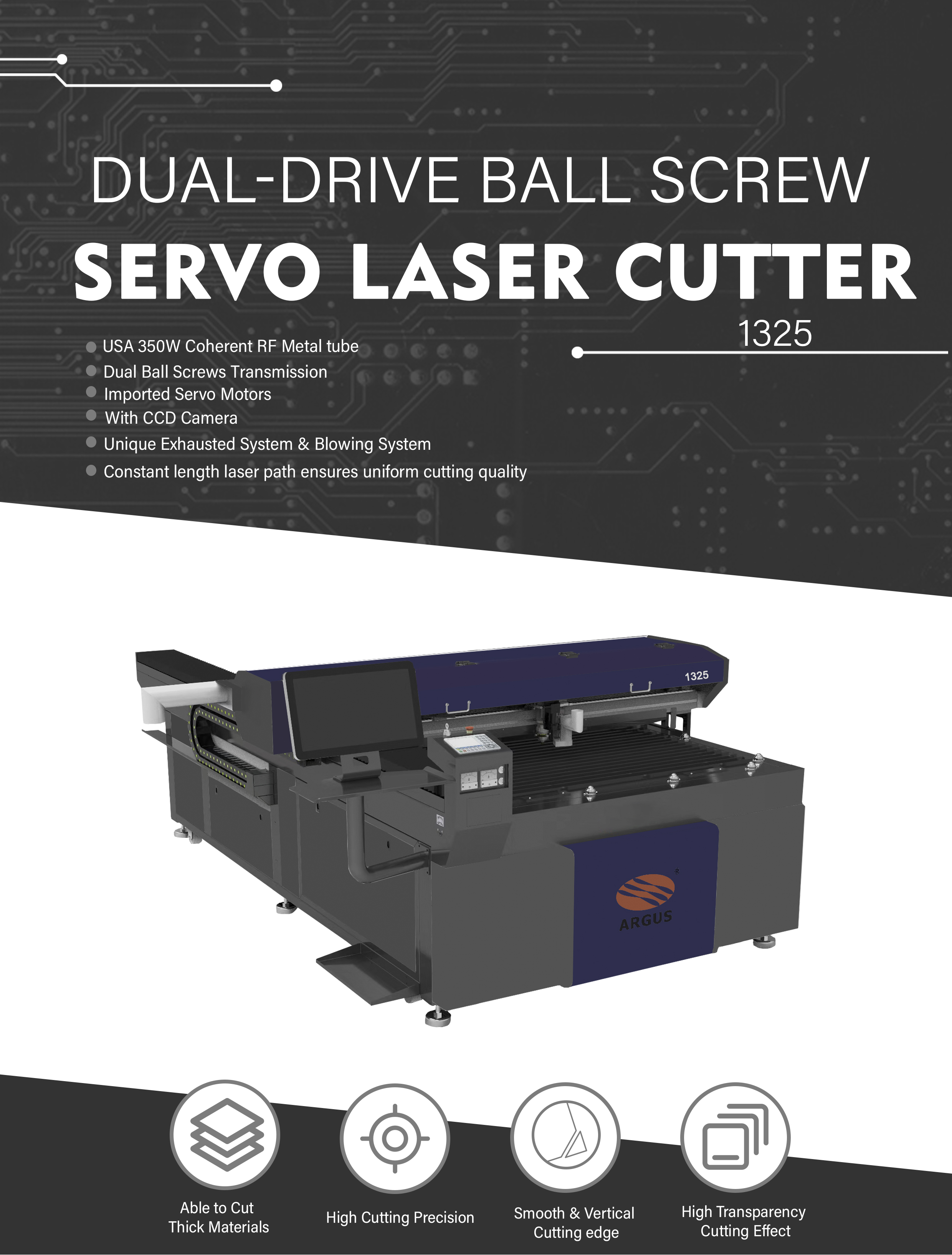

Dual-Drive Ball Screw Servo Laser Cutter 1325

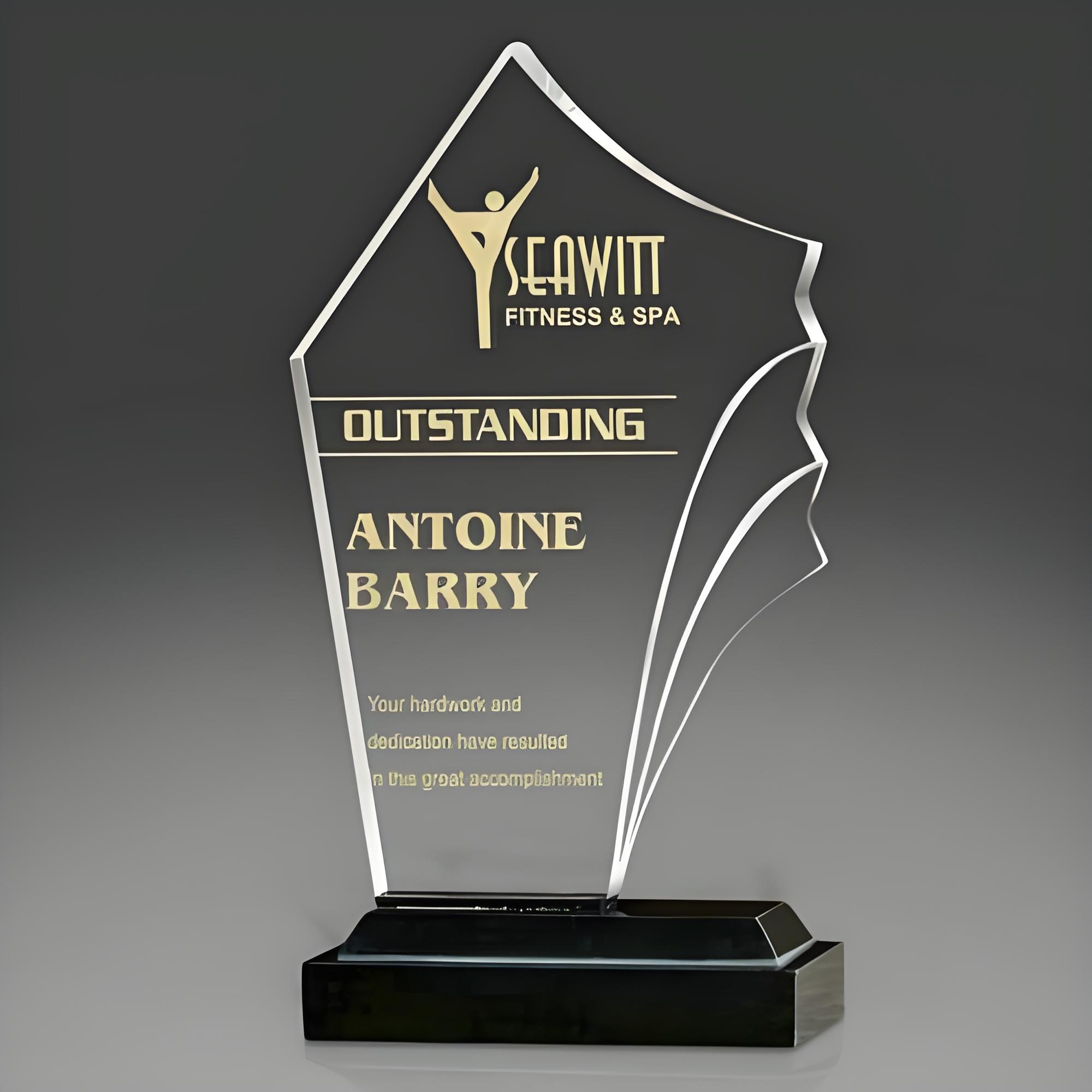

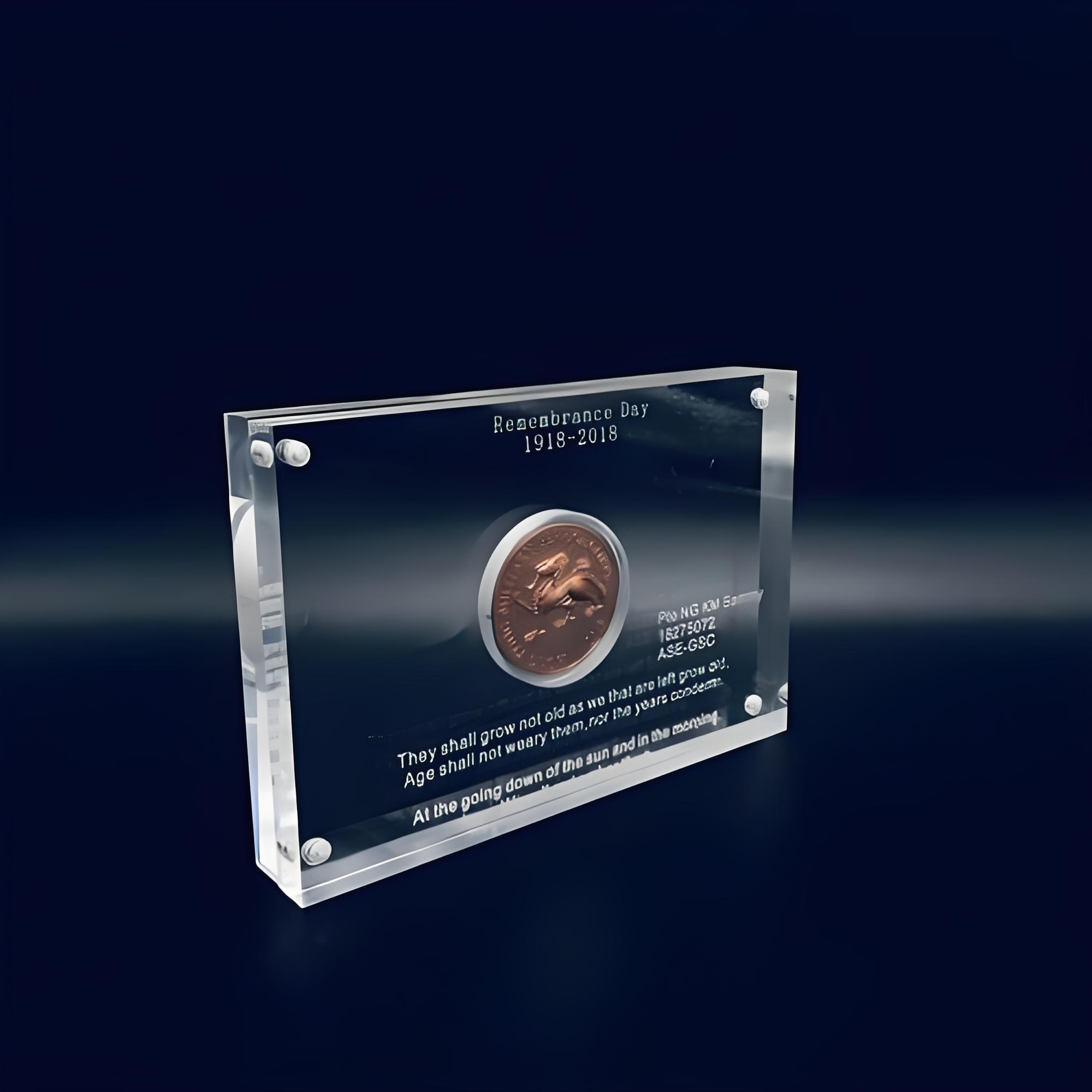

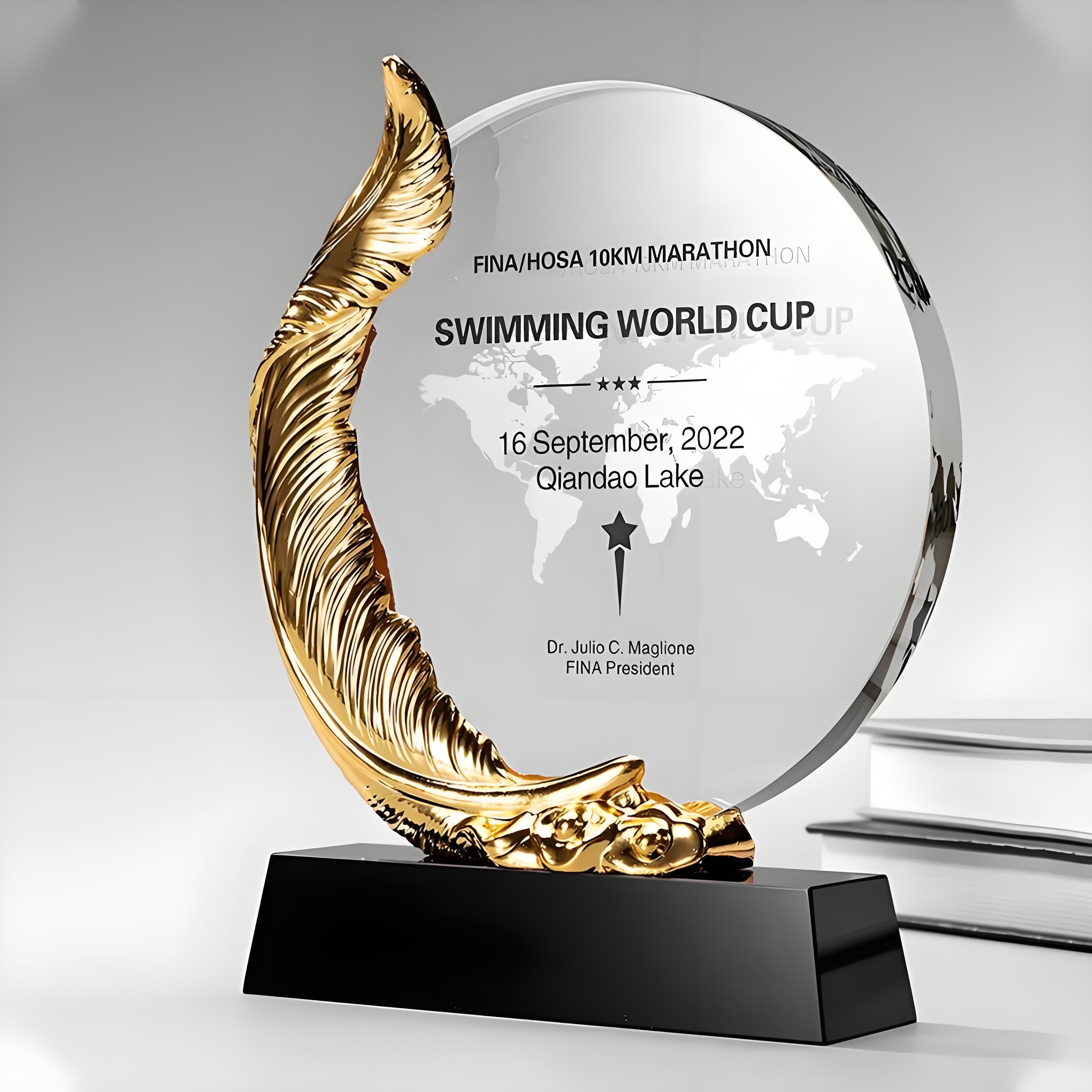

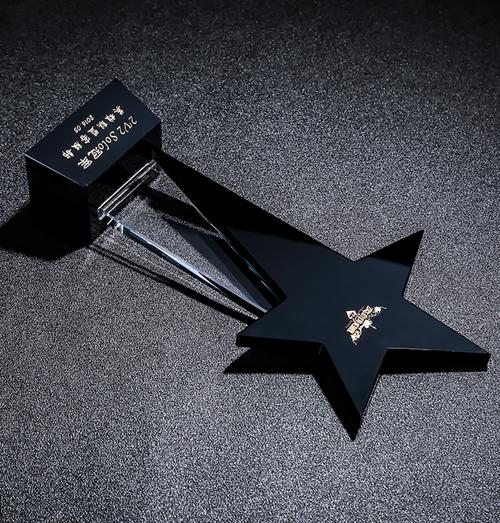

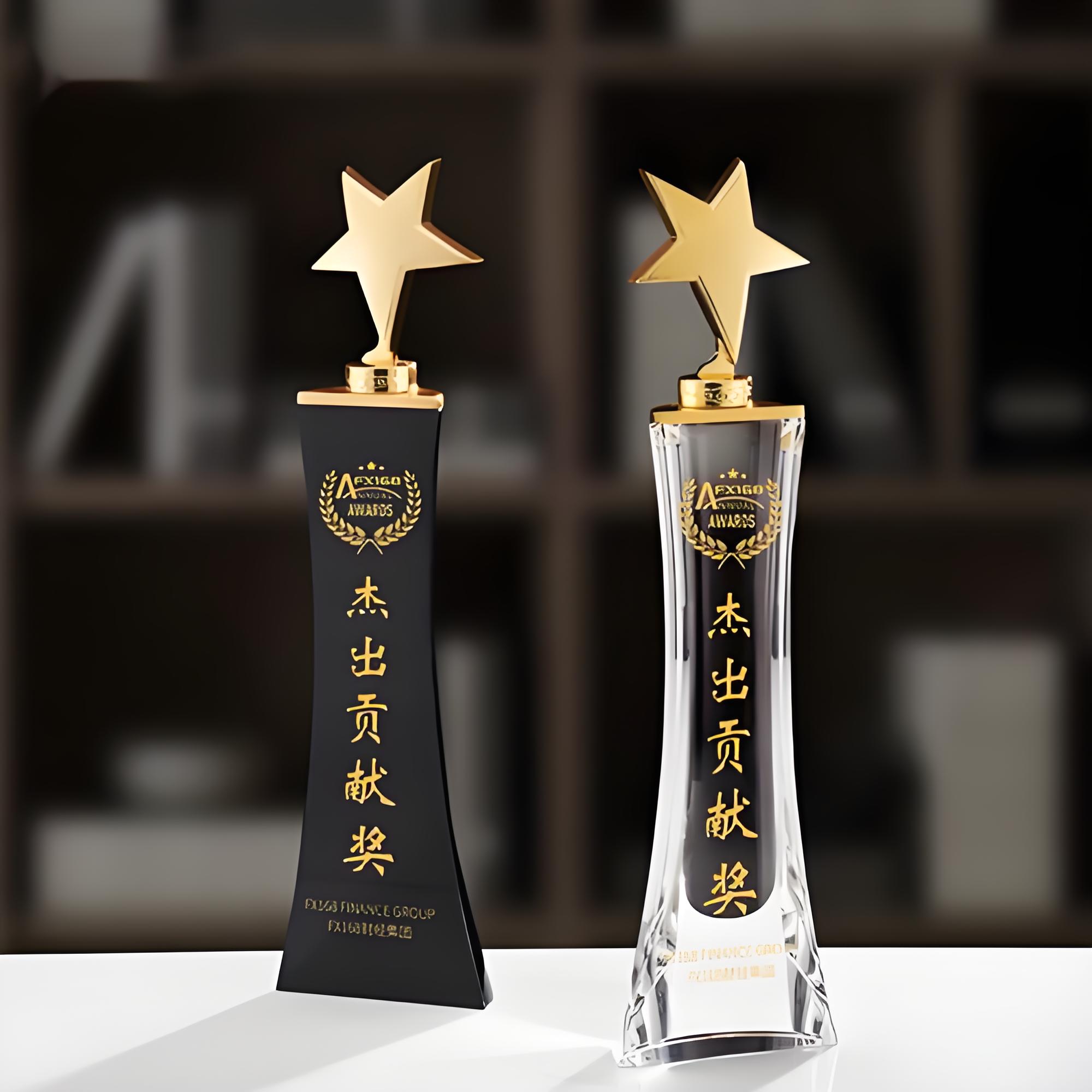

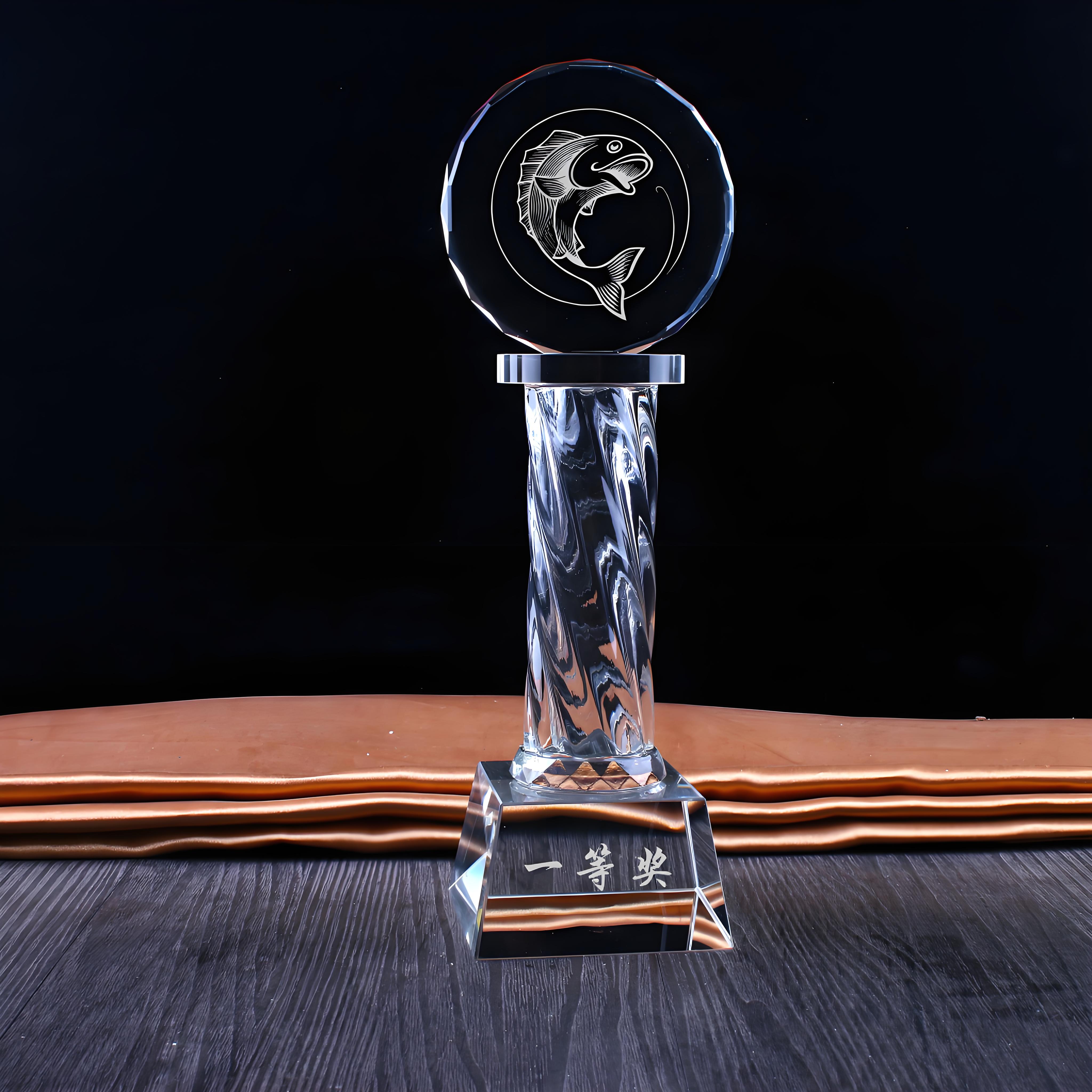

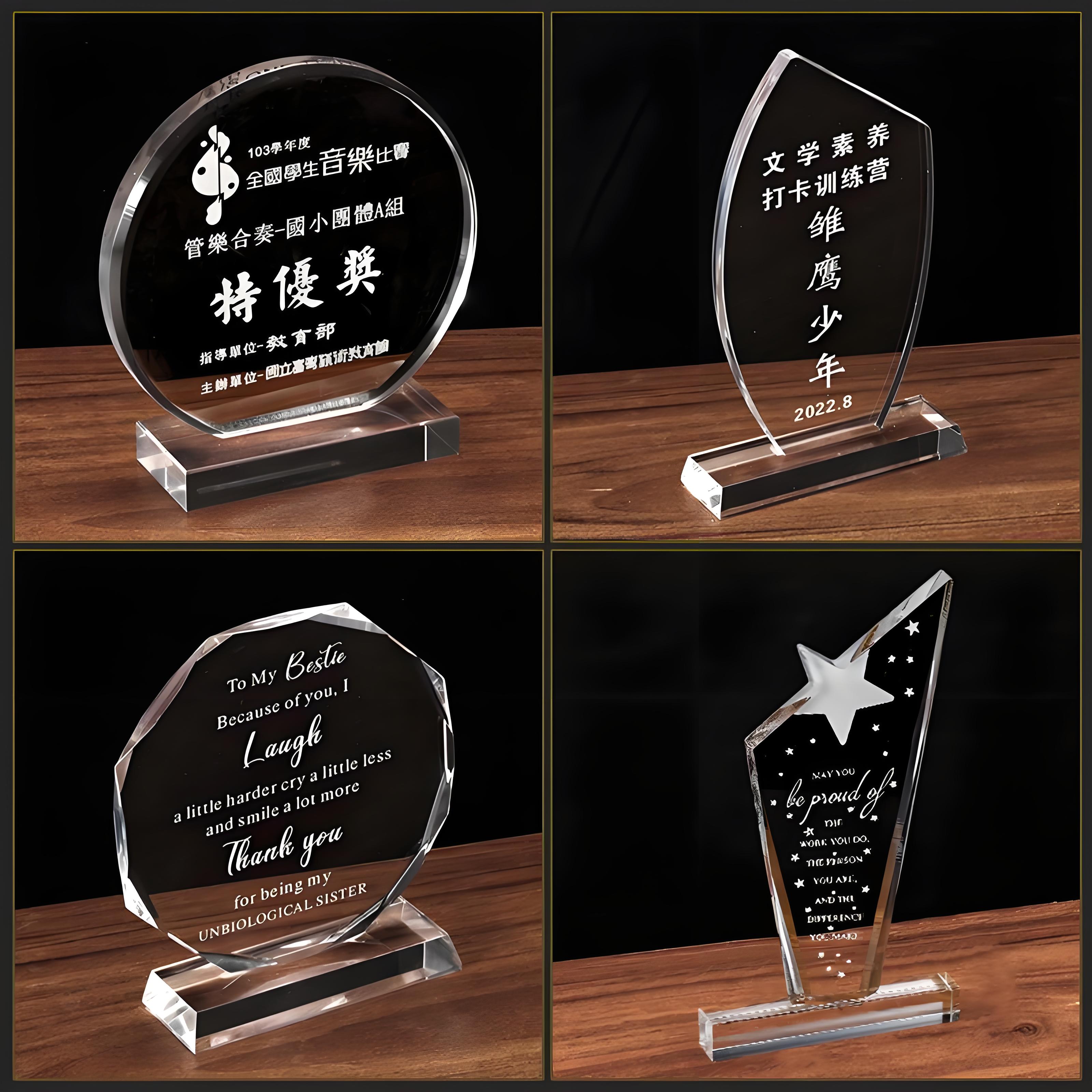

Widely used in the processing of heteromorphism drawings contour cutting, high precision high polished organic materials/acrylic cutting, display panel, display cabinet, showcase, lighting industry, photo frame woodworking industry, architectural model, handicrafts, decoration industry, sign advertising words making, LED lighting box, aerospace industry, machinery, ship, elevator industry, etc.

✦USA 350W Coherent RF Metal tube
✦X,Y axis ball screw transmission, imported Taiwan ball screws, Original imported Taiwan Linear guide, higher accurate, more durable
✦With CCD Camera
✦Unique Exhausted System & Blowing System
✦Unique Design: Equidistant Fixed beam optical laser system (5 pieces of mirrors reflecting light). Whatever how the laser head moves, from the starting point of laser to the end, the light path is always the same. That makes the cutting power and cutting effect the same
✦High Cutting Precision, Smooth & Vertical Cutting edge, with a Highly Transparent Cutting Effect

✦Color control panel, very stable, good using, support various of files, like *. dxf, *.ai, etc. Files Preview, Processing time record modify parameter at any time, etc

PRODUCT COMPOSITION

Highest Quality,Precision Accuracy

	Coherent RF Metal tube U.S. Coherent RF lasers provide high precision, stability, and energy efficiency Over 20000 hours , just refill Co2 gas then can work again
Fixed Laser Path Fixed Laser Path for make sure whole area cutting quality uniformity .
	CCD Camera Cutting Printed Materials and CCD Edge-Tracking Cutting

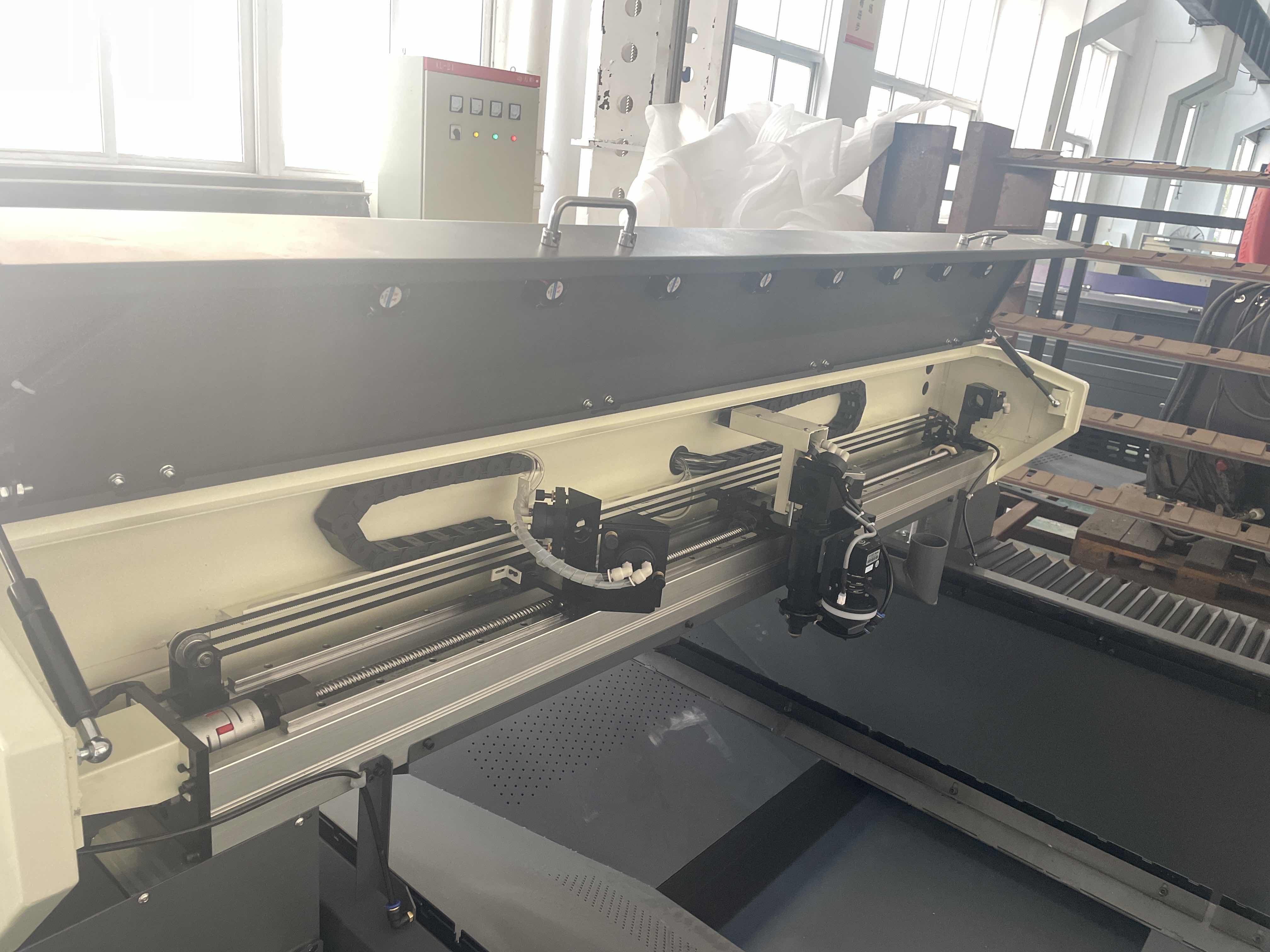

Dual Ball Screws Transmission Dual ball screws offer enhanced precision, stability, and durability, making them ideal for high-performance applications.

MORE DETAILS

TECHNICAL PARAMETERS

阿里主图

Specifications	Parameters
Cooling System	Water Cooling System
Model	SCU1325
Cutting Acrylic Thickness Range.	1-35mm
Work Area	1-35mm
Max load weigh	200kgs
Max Cutting Speed	50mm/s
Cutting Accuracy	±0.05mm
Laser Source	USA Coherent Co2 RF Metal Tube/Glass Tube
Motors	Imported Servo Motors & Drivers
Idle Speed	300mm/s
Accuracy of Repeated Orientation	±0.025mm
Transmission Way	Ball Screw Transmission
Resolution(DPI)	Available 300
Computer Interface	Huff Protection,Hydraulic Pressure Protection
Memory Buffer	128 M
Display Panel	Ruida Control Software & Card
Safety	Huff Protection,Hydraulic Pressure Protection
Weight	1500KGS

1060工厂组装

1325详情页发货

客户反馈1325

About Sunic Laser

Who are we?

Wuhan Sunic Photoelectricity Equipment Manufacture CO., LTD, located at Eastern Lake high-tech district(Optics Valley), is a high technology innovation enterprise recognized by the Chinese government. It is authorized by the government to be in charge of the "863 Project" with privilege in importing and exporting. The company is dedicated to the R&D, production, selling and service in Laser processing equipment and solar energy equipment sets.It provides the customers with complete practical solutions in this field. Today, Sunic is China's leading professional photoelectricity equipment manufacturer in Laser processing equipment with the most complete product line, widest application.
