Heat Transfer Film Cutting-Laser Machine Solution

Adopts 3D Dynamic

Galvanometer

Control System

Original importedmetal

RF laser tube

Sunic Laser selfdeveloped

software

LASER MARKING MACHINE

SPECIALLY FOR LABEL STICKER DIE-CUTTING

Integrated label sticker laser die-cutting, engraving and marking all in one!

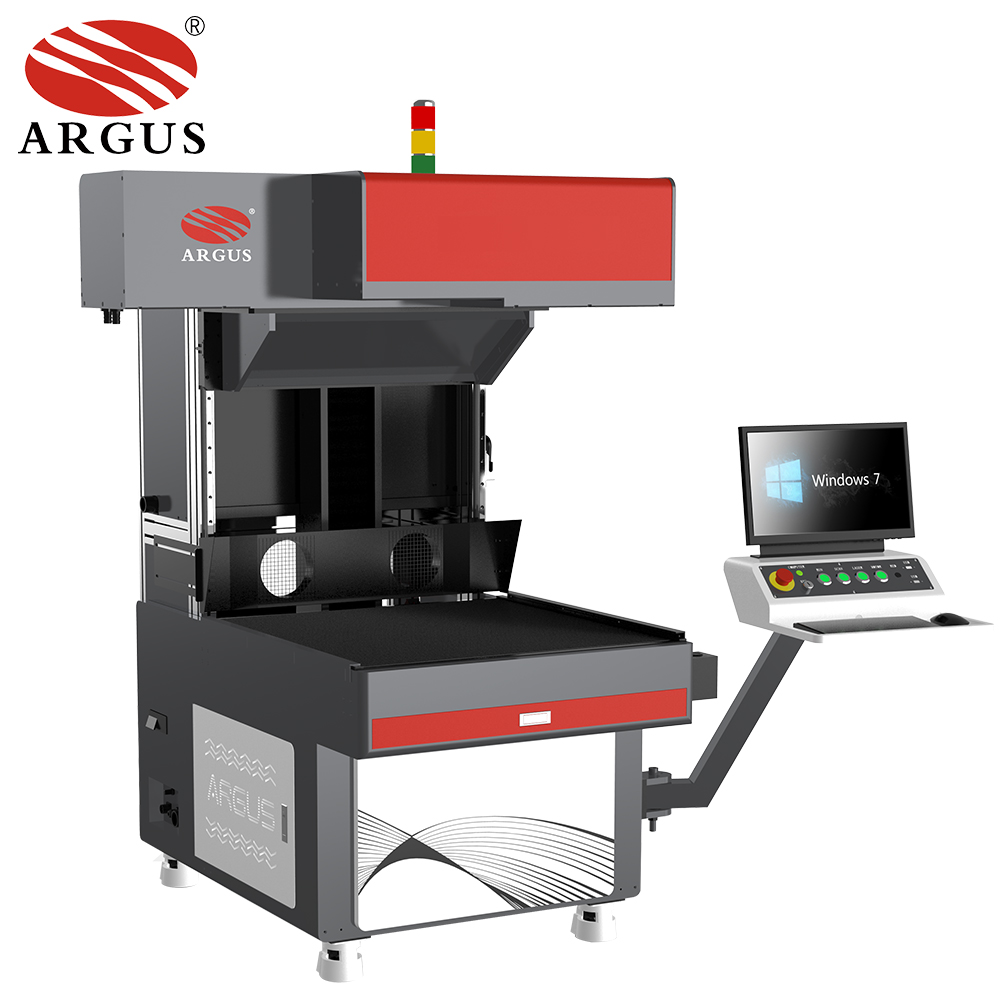

SCM2000_MDF

More refined

cutting effects

No yellow

no burnt edges

Marking area adjustable

( Max:800*800mm)

Optional vision

positioning system

PRODUCT ADVANTAGES

Galvo Scanning System

3D dynamic Galvo head,one time scan area could reach to 800*800mm.
3D dynamic galvanometer control system ensure the best processing results .

RF Laser Metal Tube

Original imported metal RF laser tube with high laser power,excellent laser spot, stable laser generation and life time of more than 20000hrs.

CCD Optional

CCD positioning function ensures accurate and reliable position measurement greatly improves the production efficiency of the factory and saves labor.

Worktable

Large marking area :Max marking area 800*800mm, can realize marking,

cutting, craving process.

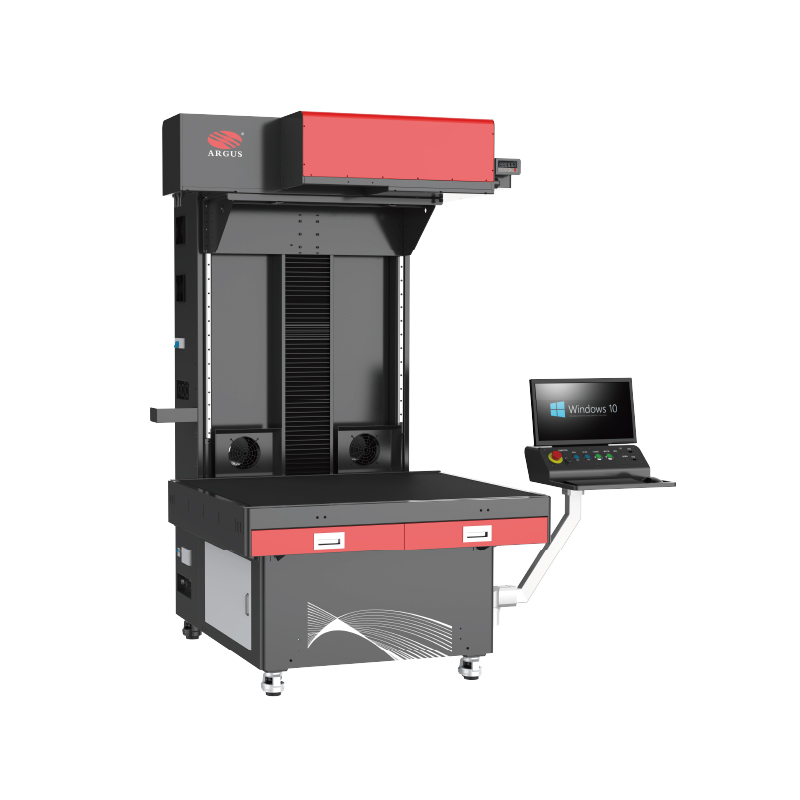

Product Parameters

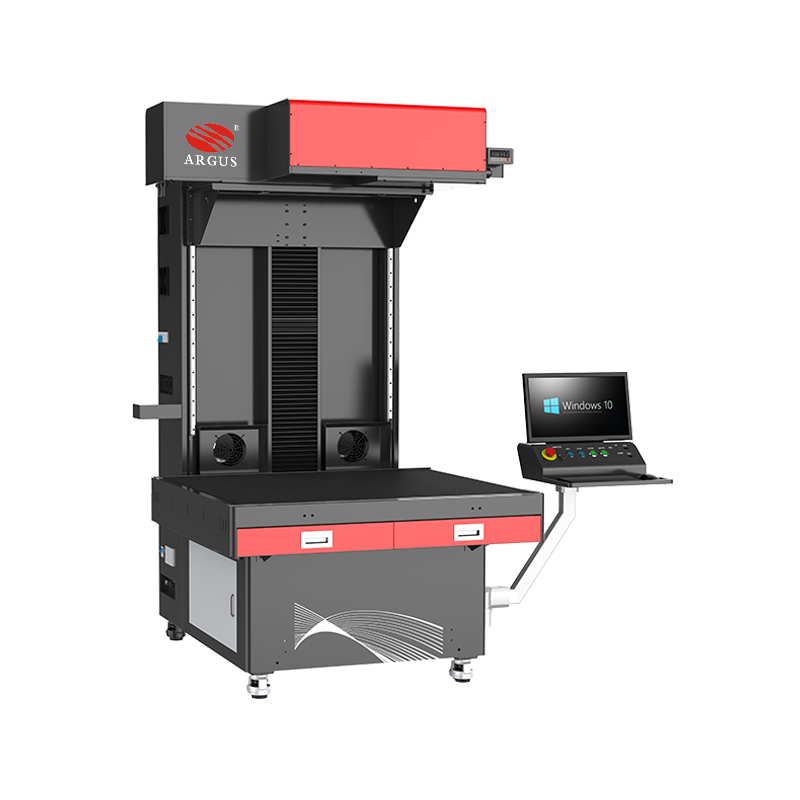

三面2000

Model	SCM2000	SCM2000-SP
Max.Marking Area	≤800x800mm(Customizable)
Laser Output Power	230-250W(Coherent J2)	250-350W(Coherent J3)
Marking speed	≤10000mm/s
Power consumption	≤7 kWh	≤9 kWh
Worktable	Aluminum Strip +MDF Worktable/Honeycomb Worktable
Laser Source	Coherent CO2 Metal RF Laser Tube
Laser Wavelength	10.64μm
Laser Frequency	20kHz~200kHz
Scanner	3D Dynamic Focusing Scanner
Repetition Precision	0.01mm
Min.Letter Size	0.3mm
System Support	WIN 7
Output Compatibility	Auto CAD,Photoshop,CorelDRAW etc
File Formats	PLT,DXP,BMP,JPG,AIetc
Software Character	Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cutting
Power supply	110V~380V/50Hz~60Hz
CoolingWay	Circulation of Water Cooling
Equipment size	1.1mx2.0mx2.0m	1.1mx2.15mx2.0m
Equipment weight	About 500KG	About 530KG

Why choose super leather laser cutting machine?

1.Higher processing speed
Super laser marking machine adapts super large aperture size 3D dynamic focusing system
		Super Series	Normal Series
2.Finer laser beam,better processing quality
		Stable control system plus super large aperture size galvo optical system
Super Series	Normal Series
3.More delicate and beautiful cutting effect
50mm aperture galvo scanner system,super's cutting line is more slim,min line width can reach to0.18mm
		Super Series	Normal Series

SAMPLE DISPLAY

>>Writing Paper Label Sticker

>>Aluminum Foil Paper Label Sticker

>>PP/PET/PVC Label Sticker

>>Thermal Paper Label Stickers

>>Fragile Paper Label Stickers

COMPARISON

with laser engraving machine

	VS
CO2 Dynamic laser marker	VS	CO2 laser engraver/cutter
	Production Capacit
	7000pcs/day
	Cutting Effect

About Sunic Laser

Who are we?

Wuhan Sunic Photoelectricity Equipment Manufacture CO., LTD, located at Eastern Lake high-tech district(Optics Valley), is a high technology innovation enterprise recognized by the Chinese government. It is authorized by the government to be in charge of the "863 Project" with privilege in importing and exporting. The company is dedicated to the R&D, production, selling and service in Laser processing equipment and solar energy equipment sets.It provides the customers with complete practical solutions in this field. Today, Sunic is China's leading professional photoelectricity equipment manufacturer in Laser processing equipment with the most complete product line, widest application.
