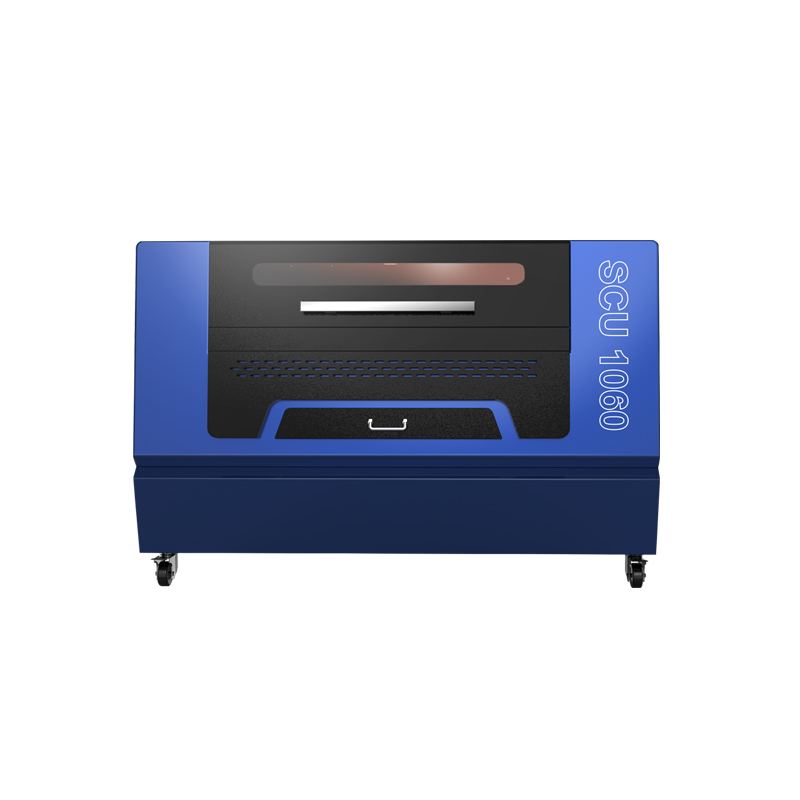

SCU1060
1.Blade or honeycomb table.Two kinds of of tables are available for different material
2.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, long service time.
3. Imported lens and mirrors. High transmittance, good focusing, reflection effect.
4. Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
5 High accuracy stepper motors and drivers. Belt transmission.
6. Tiwan Hiwin Linear square guide rails, higher precision. 7. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length. 8. Rotate cutting available
This machine is widely applied in the field of advertising industry, decoration, furniture, model manufacturing, and handcraft industry for the fine engraving, cutting and hollowing out on almost all non- metallic materials with all kinds of characters, graphs, images, trademarks and so on.
Acrylic, Plastic, Plank, ABS, Wood, Plywood, Bamboo, Paper, Organic glass, MDF, PVC, Rubber, Density board, Cloth, Leather, Derma, Corfam, Textile, Chemical leather, etc.
Terms | Technical Parameter |
Brand | Argus |
Model No. | SCU1060 |
Working Platform Size | 1000*600mm |
CO2 Laser Power | 60/80/100W |
Origin Setting(Red Pointer) | Red Light Pointer: 650nm |
Controlling system | RDCAM |
Table Type | Aluminum Strip/Honey comb |
Worktable Up & Down | 10cm Adjustable |
Air Pump | Power: 138W |
Flow Rate: 100L/Min | |
Exhaust Fan | Voltage: 220V |
Power: 550W | |
Blowing Rate: 18m3/min | |
Calibre Of Outlet: 80mm | |
Wind Pressure:1.70Kpa | |
Rotating Speed:2800RPM | |
Focus Lens | 2.5inch |
3-Phase Stepper Motor | Phase Current: 3.5A |
Whole Stepping Angle:1.2° | |
Torque: 0.9N.m | |
Mo Mirror Reflectivity | 95% |
Software Format Support | CorelDraw, Photoshop, AutoCAD, etc |
Graphic Format Support | AI, PLT, BMP, DXF, DST, T100, etc |
Process Material | Non-metal Materials |
Max Cutting speed | 300mm/s |
Max Engraving speed | 1000mm/s |
Repeated Positioning Accuracy | ±0.2mm |
Min. Cutting Character | English Letter: 3mm |
Max. Cutting Depth | 0-15mm(it’s up to the material) |
Cooling ways | Circulation Water Cooling |
Working Temperature | 0-35°C |
Working Humidity | 5-95% |
Working Power | 220V/50Hz/60Hz/2kVA, 110V/50Hz/60Hz/2kVA |
Packing Dimension | 2060*1180*1230mm |
Net weight | 300KG |
Gross Weight | 380KG |
Cubage | 2.99CBM |
Package | Standard Fumigation-Free Crate For Exporting |
