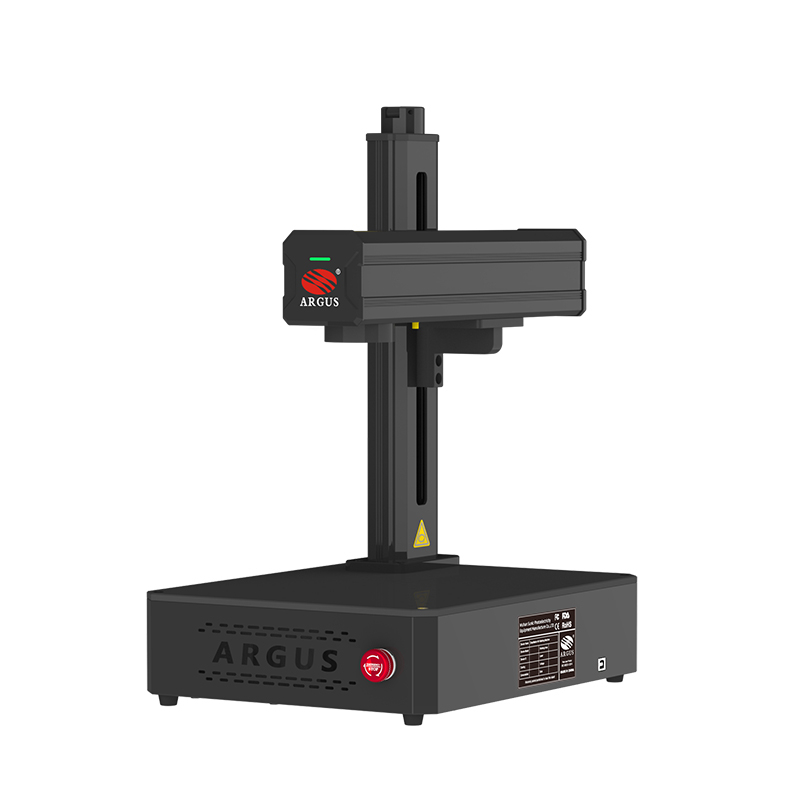

ARGUS New Portable Fiber Laser Marking Machine Lightweight And Small Size Plastic Metal Acrylic 30w Fiber Marking 50w

Name: ARGUS New Portable Fiber Laser Marking Machine Lightweight And Small Size Plastic Metal Acrylic 30w Fiber Marking 50w
Brand: ARGUS
Rating: 5.0 (85 reviews)

The Fiber Laser Marking Machine is widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, military products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic maerials.

Availability:

Quantity:



Inquire Add to Basket

Model:
SFM20/SFM30/SFM50
Brand:
ARGUS

30W/50W Optical Fiber Laser Marking and Printing Machine

The fiber laser marking machine is widely applied in electronic component, the communication,the spare parts of automobiles and motorcycles,instrument and meter, aerospace, military products, hardware and machinery, measuring and cutting tools,

sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic materials.

Model	SFM30/SFM50
Max.Marking Area	110110mm/150150mm/200*200mm(Optional)
Laser Output Power	30W/50W
Marking Depth	≤ 0.5 mm
Indicating Beam	Red Light
Power Stability	≤0.5%
Laser Accuracy	0.01mm
Focus Facula Diameter	20um
Pulse Width	90±10ns
Marking Speed	≤10000mm/s
Frequency	27kHz~60kHz
Laser Head	Chinese Sino Galvo Scanner
Cooling Way	Air Cooling
Power Supply	AC110V 50/60Hz丨AC220V 50/60Hz
File Formats	BMP, GIF, JPG, JPEG, DXF, DST, Al, Etc.
Output Compatibility	AutoCAD, CorelDRAW, Photoshop etc
Warranty	1 year Warranty for the Whole Machine
Marking Varieties	Words, Pictures, Bar Codes, Serial Numbers etc

	High Speed Marking The portable type marking series provide different power lasers, which can be adjusted according to the different marking requirements, to achieve efficient marking.
Excellent precision Produces less than 1% distortion and performs with amazing precision Complex designs can be accurate to 0.01mm
	Adapt Marking Areas Field lens with marking ranges of 110mm110mm or 150mm150mm or 175mm*175mm can be optional according to different marking requirements, with a minimum marking range of 0.3m
Easy for Operating Copyright EZCAD 2 control software.Supporting PLT, AI, DXF, BMP, JPG and other file formats easy to operating and learning.
	Laser protective cover ARGUS always puts your safety at first place. Notiee:Laser protective cover lt needs to be purchased separately.

What is fiber laser marking machine application?

The machine is used for all metal and some hard plastic laser marking and engraving. It is widely applied in electronic and communication area, it can mark on multifarious parts of autos, hardware, apparatus, sanitation, plastic surface, jewelry, exact instrument etc. It is suitable to do digital graphics figure and literal marking.

What materials can fiber laser marking machines be applied to?

Material Application:Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum,aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet marking and engraving.
