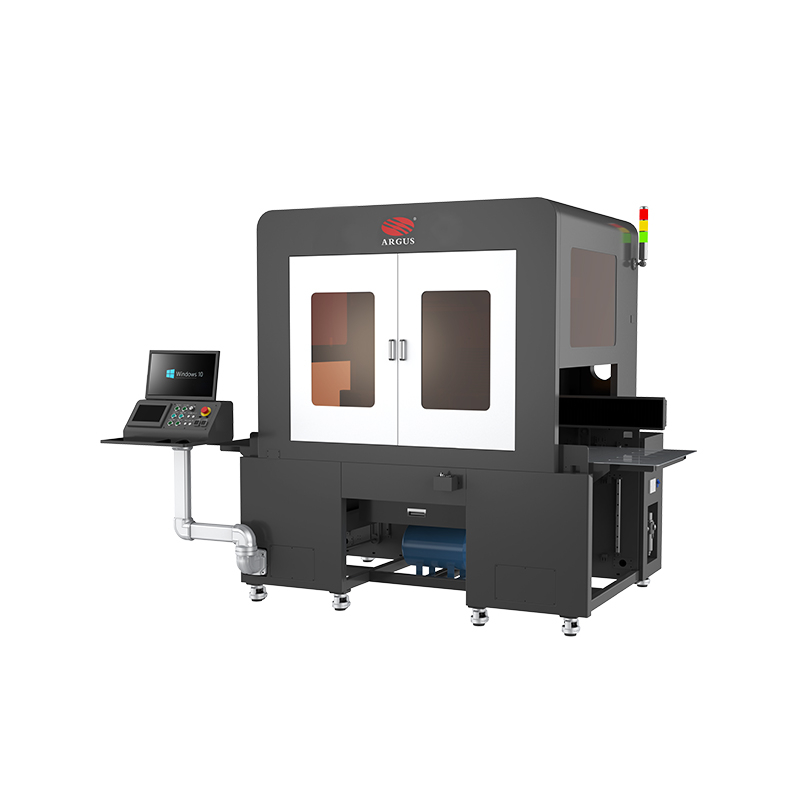

SCM2000
1.High Configuration – Equipped with next-gen high-speed laser head for faster marking and higher precision.
2.Automation – Fully automatic feeding system; stable, easy to operate; no misfeeds or blanks.
3.Large Format – Supports sheet sizes up to 600×800 mm; customizable for other dimensions.
4.Fully Enclosed – Safer laser processing, compliant with export safety standards.
5.Labor-Saving – One operator can monitor 4–6 machines simultaneously.
6.Multi-File Support – Enables automatic switching between engraving files.
7.High Efficiency – 24/7 continuous automatic operation.
8.Dual Mode – Supports both automatic and manual operation modes.
9.Multi-Function – Capable of full-cut, half-cut, engraving, and hollowing in one pass.
10.Versatile Material Use – Compatible with paper, adhesive labels, PET, acrylic, etc.
1.High Configuration – Equipped with next-gen high-speed laser head for faster marking and higher precision.
2.Automation – Fully automatic feeding system; stable, easy to operate; no misfeeds or blanks.
3.Large Format – Supports sheet sizes up to 600×800 mm; customizable for other dimensions.
4.Fully Enclosed – Safer laser processing, compliant with export safety standards.
5.Labor-Saving – One operator can monitor 4–6 machines simultaneously.
6.Multi-File Support – Enables automatic switching between engraving files.
7.High Efficiency – 24/7 continuous automatic operation.
8.Dual Mode – Supports both automatic and manual operation modes.
9.Multi-Function – Capable of full-cut, half-cut, engraving, and hollowing in one pass.
10.Versatile Material Use – Compatible with paper, adhesive labels, PET, acrylic, etc.
PRODUCT ADVANTAGES
![]() | Galvo Scanning System 3D dynamic Galvo head,one time scan area could reach to 800*800mm. |
RF Laser Metal Tube Original imported metal RF laser tube with high laser power,excellent laser spot, stable laser generation and life time of more than 20000hrs. | |
![]() | CCD Optional CCD positioning function ensures accurate and reliable position measurement greatly improves the production efficiency of the factory and saves labor. |
Worktable Large marking area :Max marking area 600mm -800mm, can realize marking, cutting, craving process. | ![]() |

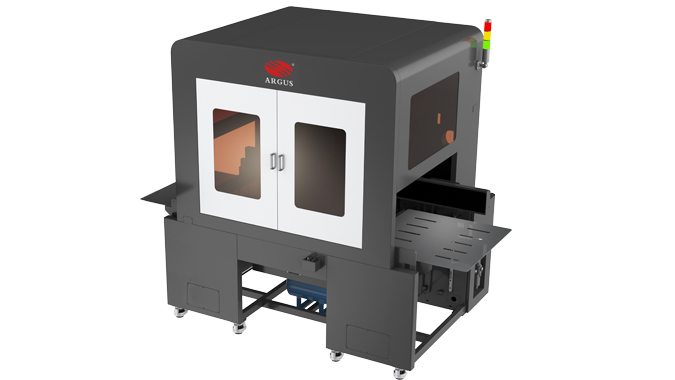

![]() | Safety Cover Industrial-Grade Fully Enclosed Laser Safety Enclosure System meets Class 1 laser safety requirements, ensuring worker safety while effectively reducing environmental contamination. |
Model | SCM2000 | |
Max.Marking Area | 600mm - 800mm | |
Laser Output Power | 250W | 350W |
Marking speed | ≤10000mm/s | |
Power consumption | ≤7 kWh | ≤9 kWh |
Worktable | Aluminum Strip +MDF Worktable/Honeycomb Worktable | |
Laser Source | Coherent CO2 Metal RF Laser Tube | |
Laser Wavelength | 10.64μm | |
Laser Frequency | 20kHz~200kHz | |
Scanner | 3D Dynamic Focusing Scanner | |
Repetition Precision | ±0.2mm | |
Minimum Line Width | 0.22mm | |
Sheet Thickness | 0.2mm-1mm | |
System Support | WIN 10 | |
Output Compatibility | Auto CAD,Photoshop,CorelDRAW etc | |
File Formats | PLT,DXP,BMP,JPG,AIetc | |
Software Character | Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cutting | |
Power supply | 110V~380V/50Hz~60Hz | |
CoolingWay | Circulation of Water Cooling | |
Equipment size | 2.6mx1.9mx2.1m | |
Equipment weight | About 1130KG |
PRODUCT ADVANTAGES
![]() | Galvo Scanning System 3D dynamic Galvo head,one time scan area could reach to 800*800mm. |
RF Laser Metal Tube Original imported metal RF laser tube with high laser power,excellent laser spot, stable laser generation and life time of more than 20000hrs. | |
![]() | CCD Optional CCD positioning function ensures accurate and reliable position measurement greatly improves the production efficiency of the factory and saves labor. |
Worktable Large marking area :Max marking area 600mm -800mm, can realize marking, cutting, craving process. | ![]() |
![]() | Safety Cover Industrial-Grade Fully Enclosed Laser Safety Enclosure System meets Class 1 laser safety requirements, ensuring worker safety while effectively reducing environmental contamination. |
Model | SCM2000 | |
Max.Marking Area | 600mm - 800mm | |
Laser Output Power | 250W | 350W |
Marking speed | ≤10000mm/s | |
Power consumption | ≤7 kWh | ≤9 kWh |
Worktable | Aluminum Strip +MDF Worktable/Honeycomb Worktable | |
Laser Source | Coherent CO2 Metal RF Laser Tube | |
Laser Wavelength | 10.64μm | |
Laser Frequency | 20kHz~200kHz | |
Scanner | 3D Dynamic Focusing Scanner | |
Repetition Precision | ±0.2mm | |
Minimum Line Width | 0.22mm | |
Sheet Thickness | 0.2mm-1mm | |
System Support | WIN 10 | |
Output Compatibility | Auto CAD,Photoshop,CorelDRAW etc | |
File Formats | PLT,DXP,BMP,JPG,AIetc | |
Software Character | Integrated Function of Dotting Design,Vector Drawing,Marking Scribing and Cutting | |
Power supply | 110V~380V/50Hz~60Hz | |
CoolingWay | Circulation of Water Cooling | |
Equipment size | 2.6mx1.9mx2.1m | |
Equipment weight | About 1130KG |
>>Wedding Invitation Cards | ||
![]() | ![]() | ![]() |
>>Candy Boxes | ||
![]() | ![]() | ![]() |
>>3D Paper Caving Lamps | ||
![]() | ![]() | ![]() |
>>Pop up Cards | ||
![]() | ![]() | ![]() |
>>Cupcake Rim | ||
![]() | ![]() | ![]() |
>>Painting Template | ||
![]() | ![]() | ![]() |
with laser engraving machine
![]() | VS | ![]() |
CO2 Dynamic laser marker | CO2 laser engraver/cutter | |
![]() | Production Capacit | ![]() |
![]() | 7000pcs/day | ![]() |
![]() | Cutting Effect | ![]() |
>>Wedding Invitation Cards | ||
![]() | ![]() | ![]() |
>>Candy Boxes | ||
![]() | ![]() | ![]() |
>>3D Paper Caving Lamps | ||
![]() | ![]() | ![]() |
>>Pop up Cards | ||
![]() | ![]() | ![]() |
>>Cupcake Rim | ||
![]() | ![]() | ![]() |
>>Painting Template | ||
![]() | ![]() | ![]() |
with laser engraving machine
![]() | VS | ![]() |
CO2 Dynamic laser marker | CO2 laser engraver/cutter | |
![]() | Production Capacit | ![]() |
![]() | 7000pcs/day | ![]() |
![]() | Cutting Effect | ![]() |
